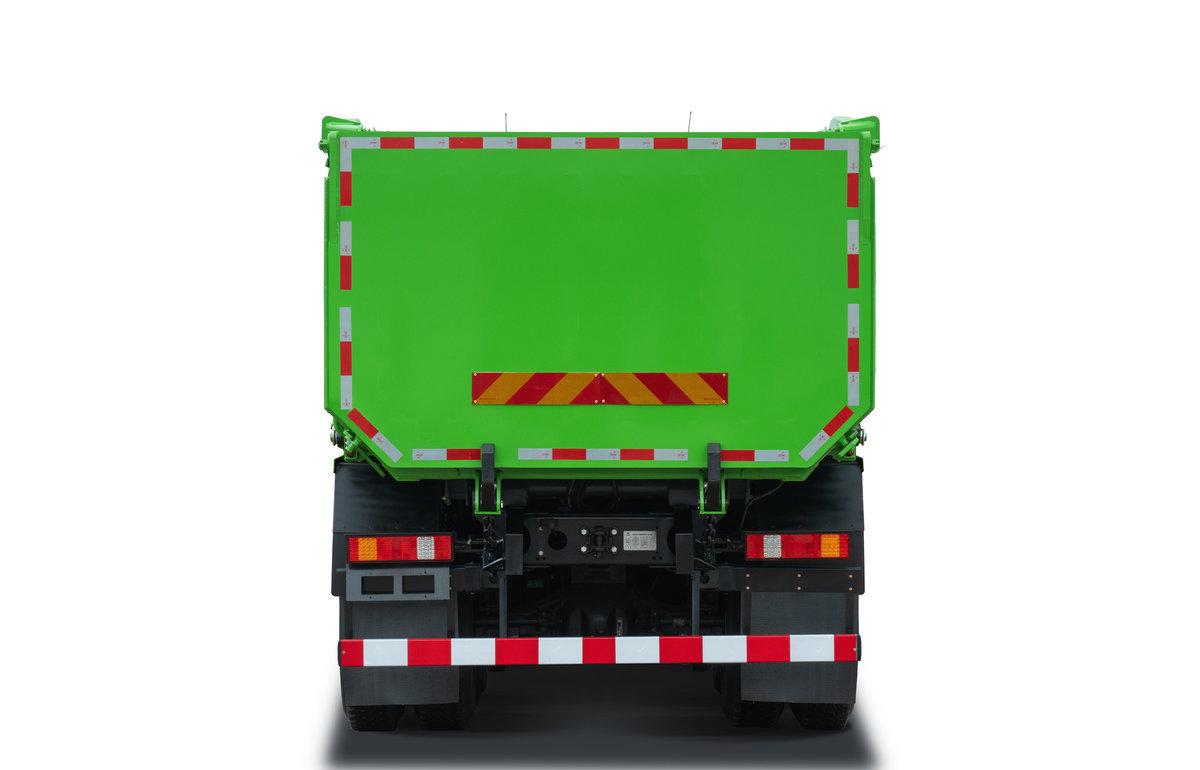

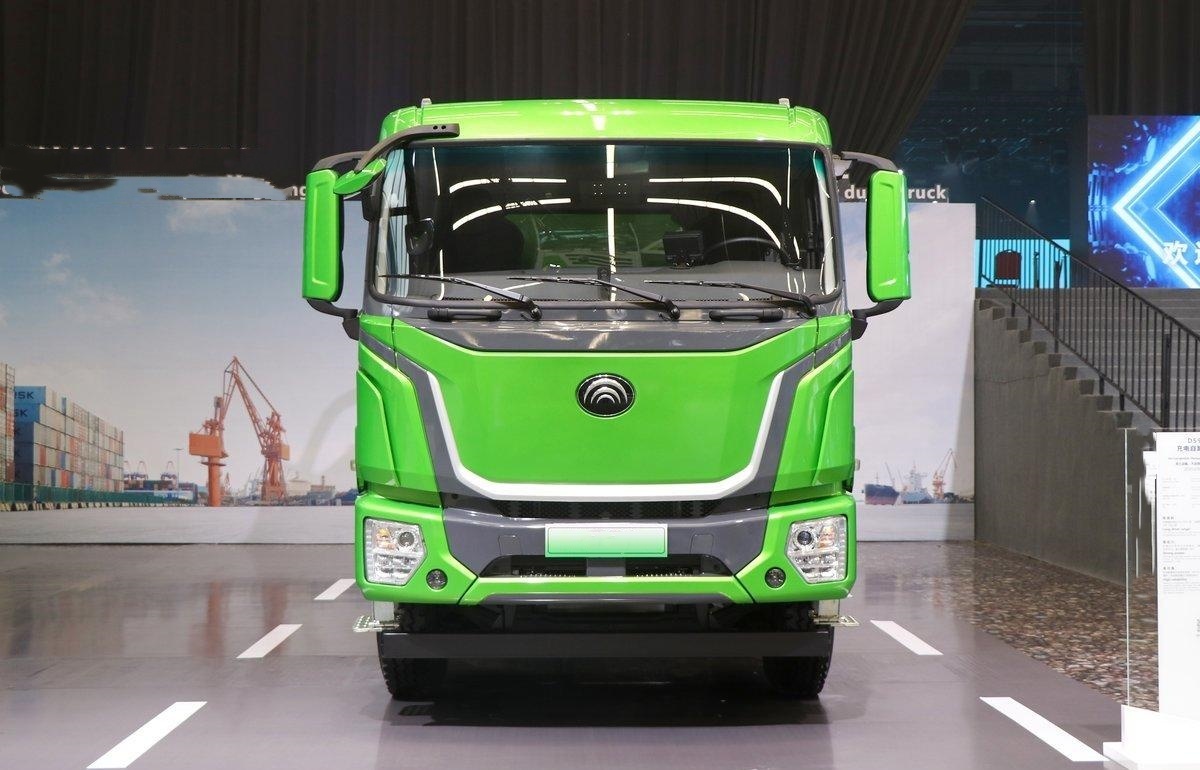

D590E 31T 8X4 5.6-meter pure electric dump truck

شاحنة قلابة كهربائية نقية D590E 31T 8X4 بطول 5.6 متر

نموذج الإعلان	ZKH3310P6BEV31
نموذج القيادة	8X4
قاعدة العجلات	1950 + 3050 + 1350مم
Body Length	9.43 متر
Body Width	2.55 متر
Body Height	3.5 متر
الكتلة الإجمالية	31 طن
Rated Load	13.37 طن
وزن السيارة	17.5 طن
السرعة القصوى	89 كم/ساعة

وصف
التعليقات (0)

مختصر

The D590E 31T 8X4 5.6-meter pure electric dump truck is a cutting-edge solution for heavy-duty material hauling. It combines a powerful electric drivetrain with a practical and efficient design.

سمات

The D590E 31T 8X4 5.6-meter pure electric dump truck stands out with several notable features.

The 31T payload capacity is highly substantial, enabling it to handle large and heavy loads of materials effortlessly.

The 8X4 drivetrain configuration offers superior traction and stability, ensuring smooth operation on various terrains and road conditions.

The 5.6-meter dump body is not only spacious but also engineered for efficient and quick loading and unloading processes.

The pure electric nature of this dump truck is a major advantage. It operates with zero emissions, contributing significantly to a cleaner and more sustainable environment. The electric motor provides strong and consistent power, delivering excellent performance.

The battery system is likely designed to offer a considerable range, allowing for extended working periods without the need for frequent charging. It may also support fast charging capabilities to minimize downtime.

The vehicle might incorporate advanced energy management systems to optimize power usage and extend the battery’s lifespan.

It could be equipped with a comfortable and ergonomic cabin, featuring intuitive controls and modern amenities to enhance the driver’s experience.

In terms of safety, it may include features such as advanced braking systems, التحكم في الاستقرار, and blind-spot monitoring to ensure the safety of the driver and other road users.

For example, in large-scale construction sites or mining areas, the D590E dump truck can reliably transport materials while minimizing its environmental impact.

Overall, the D590E 31T 8X4 5.6-meter pure electric dump truck combines power, سعة, efficiency, and eco-friendliness to offer a top-notch solution for heavy-duty material transportation.

مواصفة

المعلومات الأساسية
نموذج الإعلان	ZKH3310P6BEV31
نموذج القيادة	8X4
قاعدة العجلات	1950 + 3050 + 1350مم
Body Length	9.43 متر
Body Width	2.55 متر
Body Height	3.5 متر
الكتلة الإجمالية	31 طن
Rated Load	13.37 طن
وزن السيارة	17.5 طن
السرعة القصوى	89 كم/ساعة
Tonnage Level	شاحنة ثقيلة
Place of Origin	Zhengzhou, Henan
نوع الوقود	Pure Electric
محرك
Motor Brand	Yutong Bus
Motor Model	TZ400XSYTB99
نوع المحرك	Permanent Magnet Synchronous Motor
القوة المقدرة	260كيلوواط
قوة الذروة	380كيلوواط
Motor Rated Torque	1400 ن · م
Peak Torque	2800 ن · م
فئة الوقود	Pure Electric
معلمات صندوق الشحن
نموذج صندوق الشحن	U-shaped Box
طول صندوق الشحن	5.6 متر
عرض صندوق الشحن	2.3 متر
Cargo Box Height	1.5 متر
Sealing Cover Form	Integral Forward-Moving Iron Cover, Tarpaulin Cover, Butterfly Cover
Cargo Box Type	U-shaped, Rectangular
Loading Parameters
Lifting Form	Front-Top Type
معلمات الكابينة
Cab	Flat-Top Cab
العدد المسموح به من الركاب	2
عدد صفوف المقاعد	Single-Row
معلمات الهيكل
Allowable Load on Front Axle	6500/6500KG
Allowable Load on Rear Axle	18000 (two-axle group) كجم
Tire
مواصفات الإطارات	12.00R20 18PR
عدد الإطارات	12
بطارية
ماركة البطارية	كاتل
Battery Type	Lithium Iron Phosphate
سعة البطارية	422 كيلووات ساعة
تكوين التحكم
ABS Anti-lock Braking System	●
