BRIEF

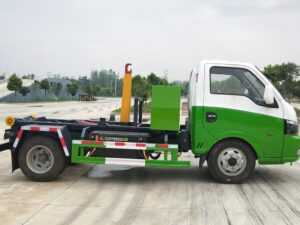

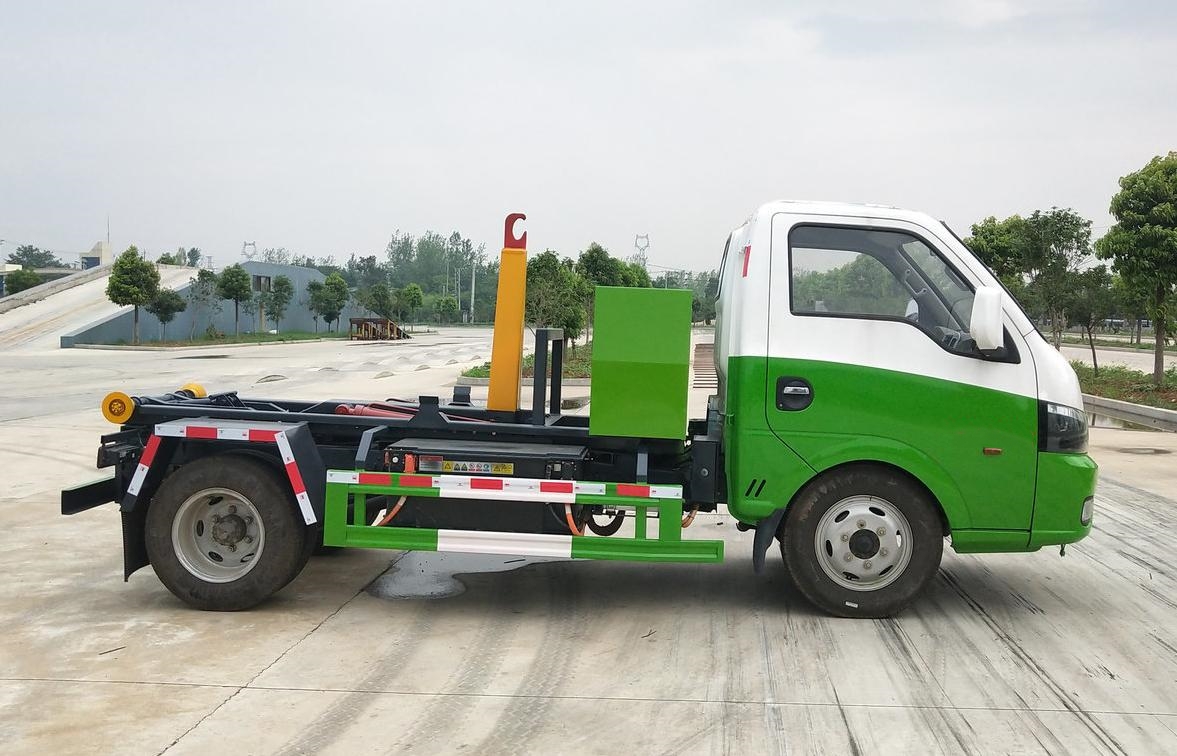

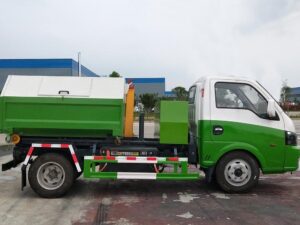

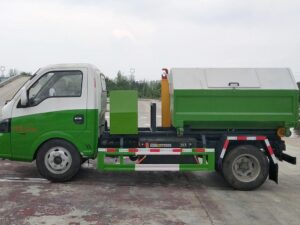

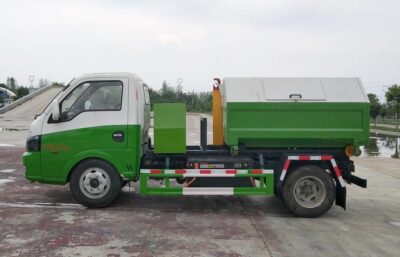

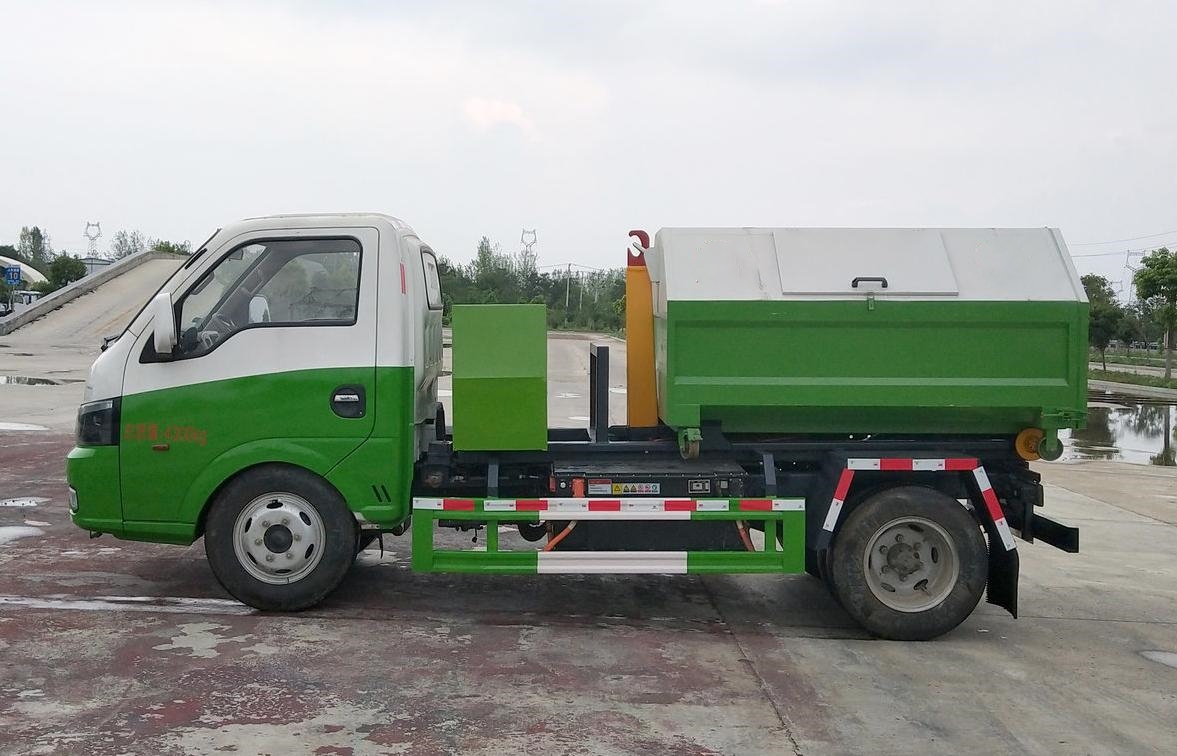

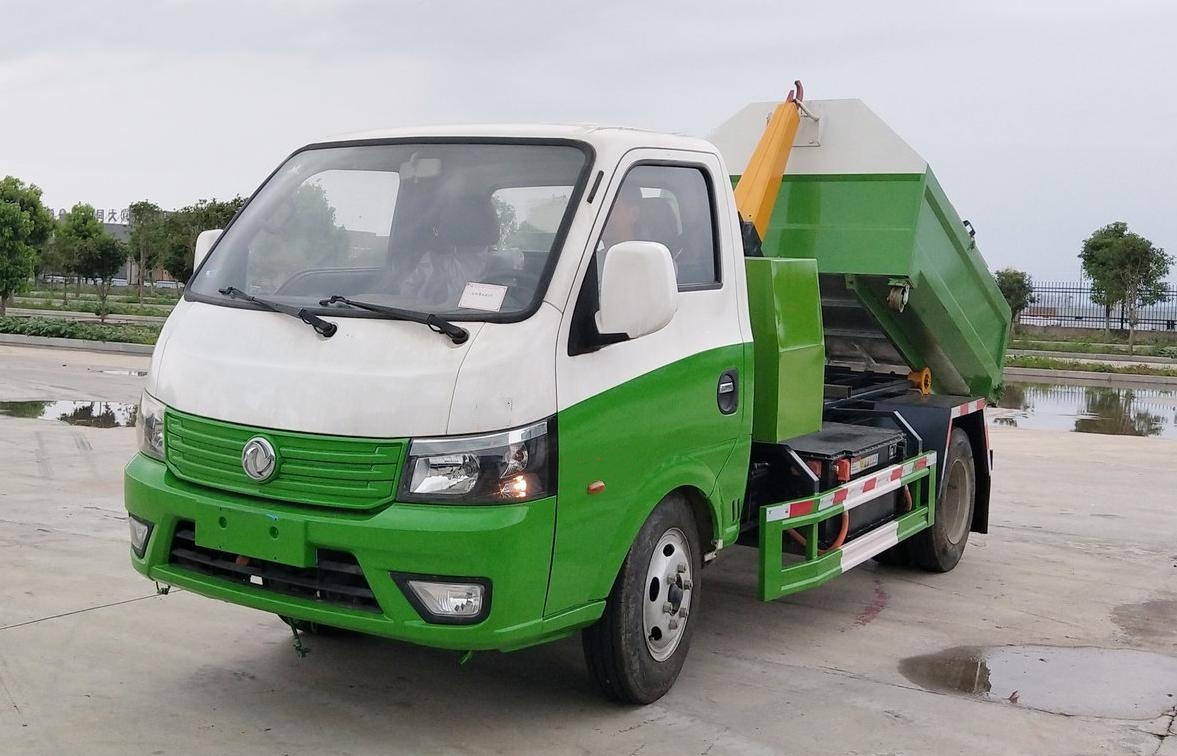

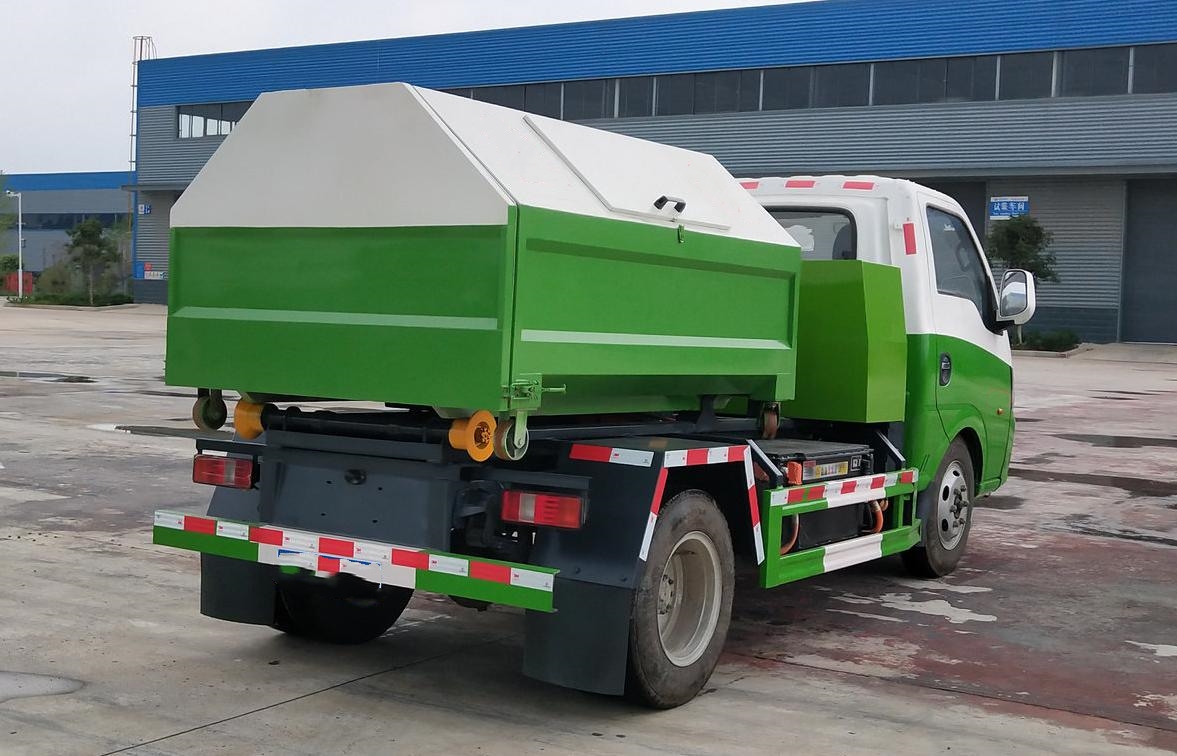

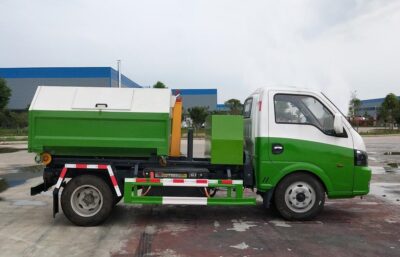

The Chengli 4.3 Ton Camell elevador de ganxo elèctric is a highly efficient and versatile vehicle. With a 4.3-ton capacity, it is designed to handle a significant amount of cargo. Powered by electricity, it offers a cleaner and more sustainable alternative to traditional fuel-powered trucks. The hook lift mechanism allows for quick and easy loading and unloading of containers, making it ideal for a variety of applications such as waste management, construction, and logistics. With its reliable performance and user-friendly design, the Chengli 4.3 Ton Electric Hook Lift Truck is a valuable asset for any business in need of a dependable transportation solution.

FEATURES

• With a 4.3-ton capacity, it is designed to handle a significant amount of weight. The electric power source provides reliable performance while being environmentally friendly.
• The electric motor offers sufficient power to ensure smooth operation even when fully loaded, making it suitable for a variety of applications.

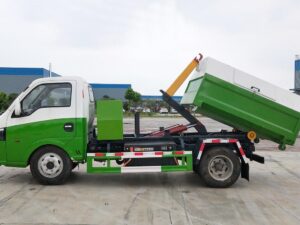

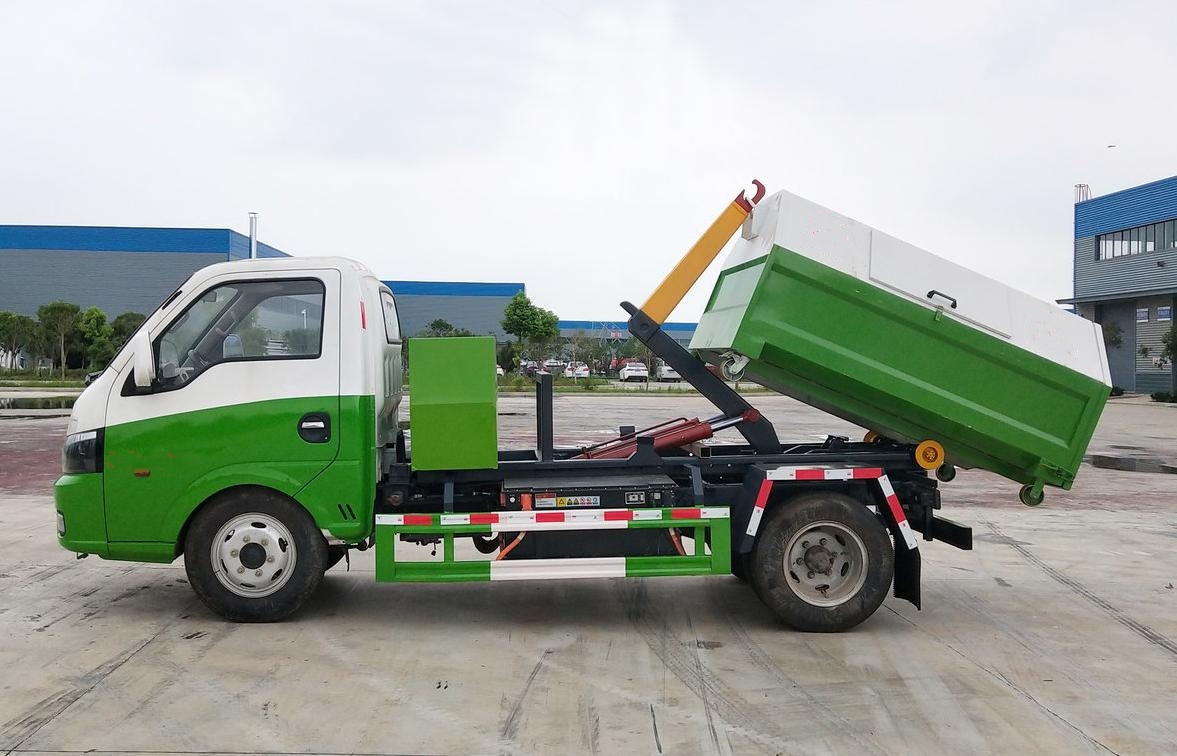

• The hook lift system is a key feature of this truck. It allows for quick and easy attachment and detachment of containers, saving time and increasing productivity.
• The mechanism is designed to be robust and reliable, capable of handling different types of containers securely.
• It provides flexibility in transporting various types of loads, from waste containers to construction materials.

• Equipped with advanced technology, the truck may have features such as intelligent controls and monitoring systems. These can help optimize performance and ensure safe operation.
• Some models may also have features like automatic leveling or remote control operation for added convenience.

• Built with high-quality materials, the Chengli 4.3 Ton Electric Hook Lift Truck is designed to withstand the rigors of daily use.
• It undergoes rigorous testing to ensure durability and reliability, providing long service life and minimal downtime.

• Safety is a top priority, and this truck is equipped with various safety features. These may include safety locks, emergency stop buttons, and anti-slip surfaces.
• The hook lift mechanism is designed with safety interlocks to prevent accidental detachment of containers.

• Despite its size and capacity, the truck is designed to be maneuverable. It may have a compact design and responsive steering, allowing it to navigate through narrow streets and tight spaces.
• This makes it suitable for use in urban areas or on construction sites with limited space.

• The truck can be used in a wide range of industries and applications. It is ideal for waste management, construction, logistics, and more.
• Its versatility allows it to adapt to different needs and requirements, making it a valuable asset for businesses.

SPECIFICATION

Basic Information
Drive form	4X2
Wheelbase	2800mm
Body length	5.3 meters
Body width	1.86 meters
Body height	2 meters
Vehicle weight	2.5 tons
Rated load	1.67 tons
Total mass	4.3 tons
Maximum speed	90km/h
Factory standard range	280km
Motor
Motor brand	CRRC Times
Motor model	TZ220XS504
Motor type	Permanent magnet synchronous motor
Rated power	60kW
Peak power	140kW
Motor rated torque	110N·m
Peak torque	290N·m
Mounted equipment parameters
Vehicle type	Camió elevador de ganxo elèctric
Special function description	Collection and transportation of urban environmental sanitation garbage
Cab parameters
Cab	Single row, non-tilting
Transmission parameters
Transmission model	Automatic transmission
Chassis parameters
Chassis series	Dongfeng Huashen
Chassis model	EQ1040TTZEVJ1
Number of leaf springs	3/5, 6/7+4
Front axle load	1130kgKG
Rear axle load	2365kgKG
Tires
Tire specification	185R14LT 6PR
Number of tires	6 pieces
Battery
Battery brand	Lishen
Battery model	LS1P50S-202Ah
Battery type	Lithium iron phosphate battery
Battery capacity	64.64kWh
Energy density	136.6Wh/kg
Battery rated voltage	320V
Charging method	DC charging, AC charging
Charging time	DC charging 2h, AC charging 6-8h
Brand of electronic control system	Jingjin Power
