ESPESPIKASYON
Batakang Impormasyon | |
Modelo sa pahibalo | DFD5030CCYLBEV1 |

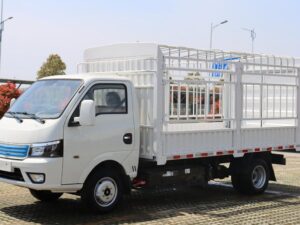

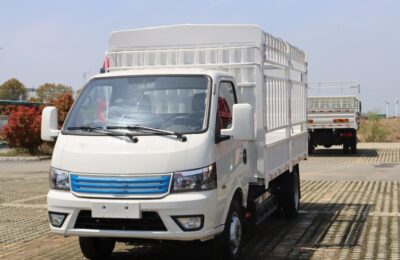

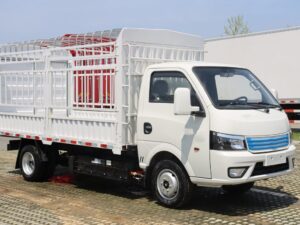

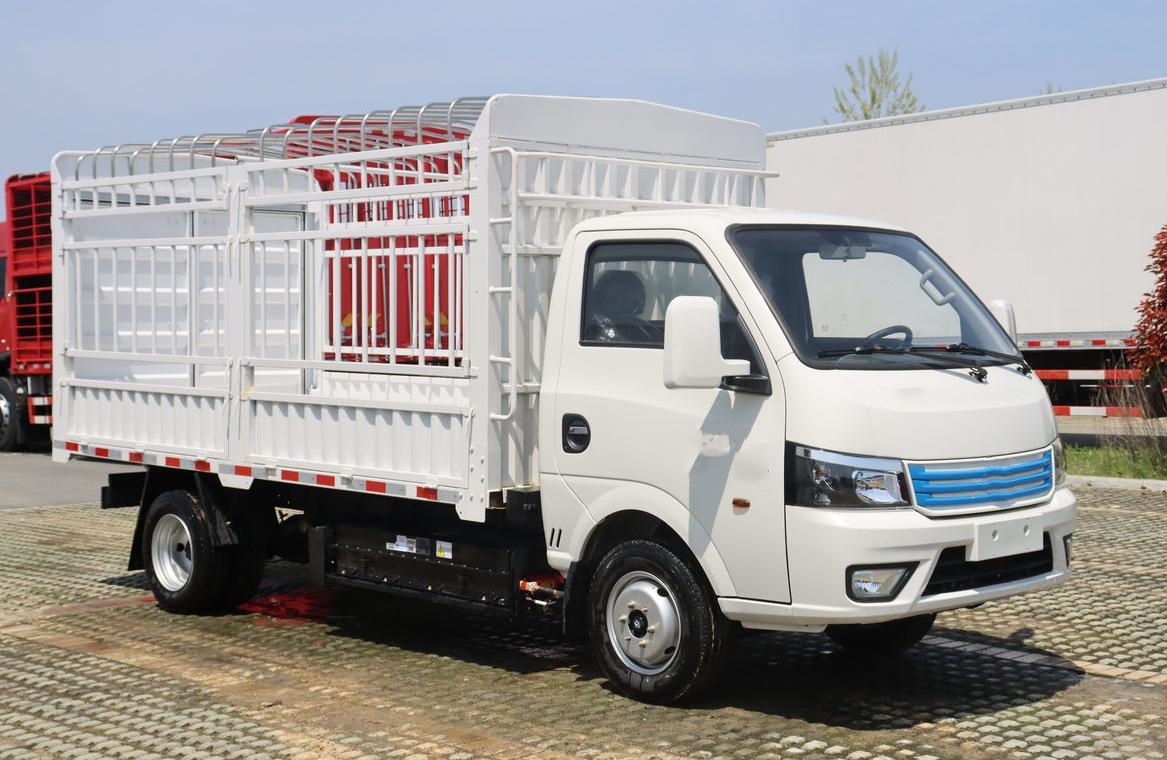

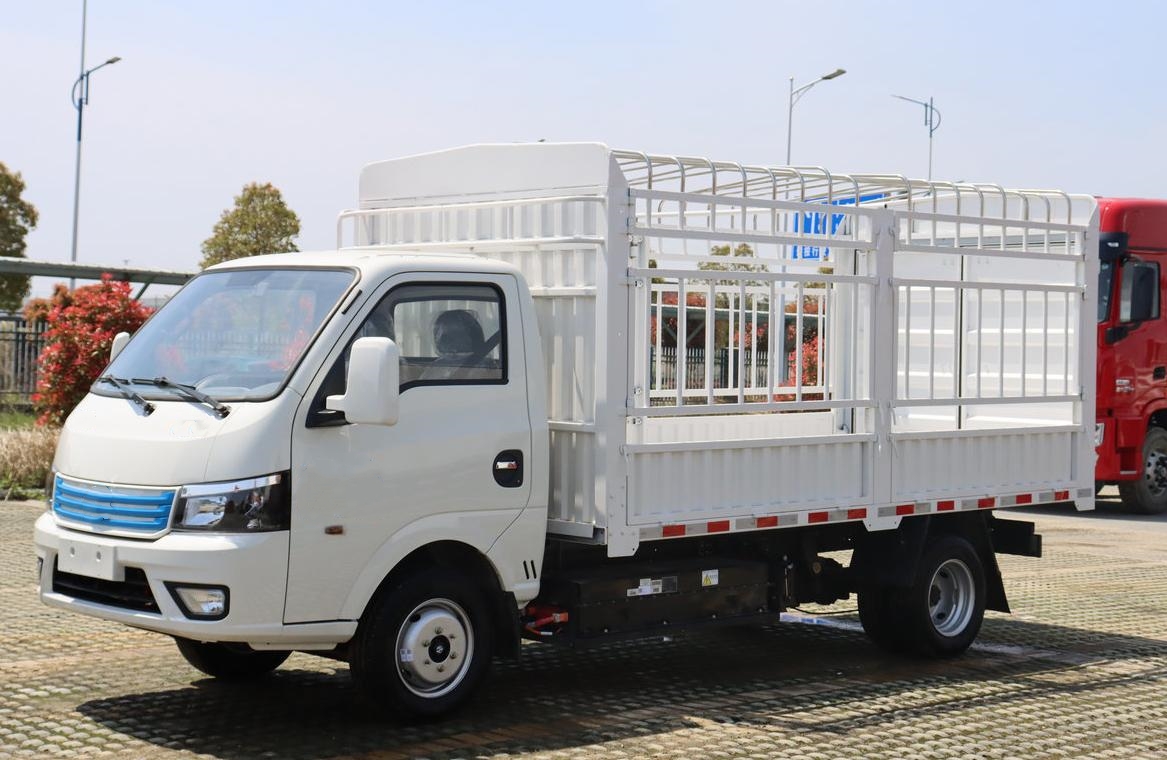

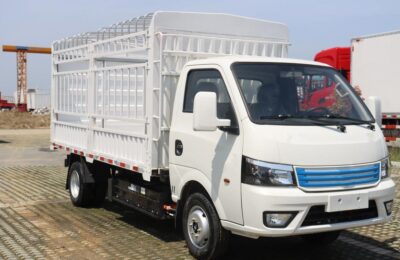

Type | Cage truck |
Porma sa pagmaneho | 4X2 |
Wheelbase | 3400mm |
Ang lebel sa gitas-on sa kahon | 3.8 metros |
Ang gitas-on sa sakyanan | 5.985 metros |
gilapdon sa sakyanan | 1.89 metros |
Taas sa sakyanan | 2.265 metros |
Kinatibuk-ang masa | 3.495 tonelada |
Rated load | 1.195 tonelada |
Timbang sa sakyanan | 2.17 tonelada |
Kinatas-ang tulin | 85km/h |
Pabrika-standard nga cruising range | 270km |
Ang lebel sa tonelada | Micro truck |
Dapit nga gigikanan | Shiyan, Hubei |
Remarks | Standard configuration: MP3, braking energy recovery, vacuum-assisted dual-circuit hydraulic braking; Optional:air deflector, reversing radar. |
Motor | |
Brand sa motor | Dongfeng Huashen |
Modelo sa motor | TZ180XS-HSM901 |
Type sa motor | Permanent magnet synchronous |
Gi-rate nga gahum | 50kW |
Kinatas-ang gahum | 90kW |
Motor rated torque | 110N·m |
Peak torque | 245N·m |
Kategoriya sa gasolina | Purong kuryente |
Mga parameter sa cargo box | |

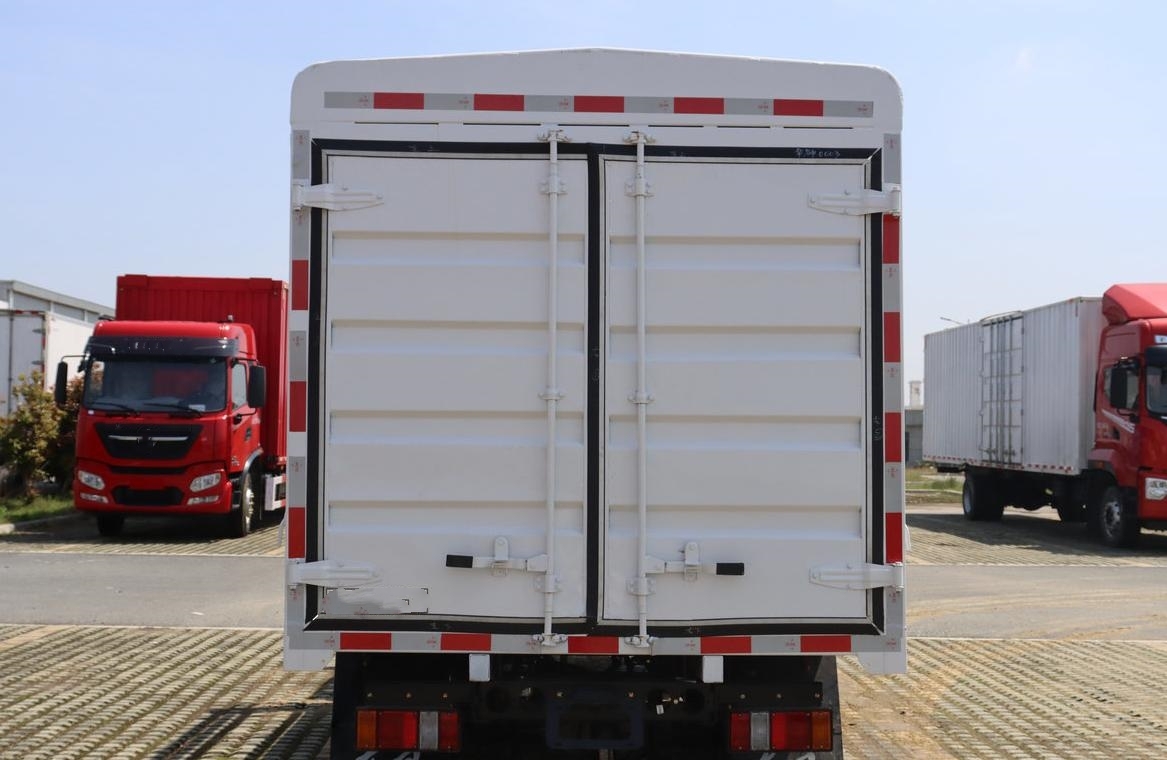

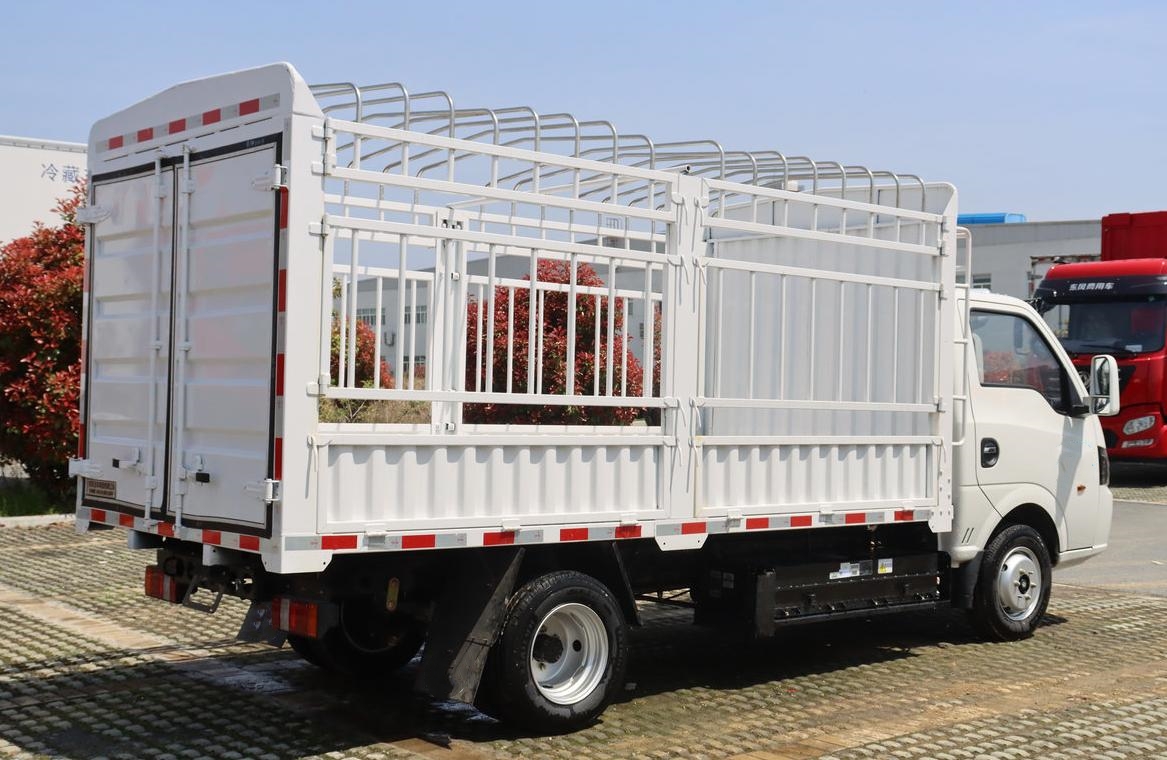

Porma sa cargo box | Uri sa hawla |
Ang gitas-on sa kahon sa kargamento | 3.85 metros |
Cargo box gilapdon | 1.75 metros |
Mga parameter sa kab | |
Number of permitted occupants | 2 mga tawo |
Seat row number | Usa ka laray |
Mga parameter sa chassis | |
Gitugotan nga load sa atubangan nga ehe | 1300kg |
Gitugotan nga load sa likod nga ehe | 2195kg |
Mga ligid | |
Pagtino sa ligid | 185R15LT 6PR |
Gidaghanon sa mga ligid | 6 |
Baterya | |
Brand sa baterya | CATL |
Matang sa baterya | Lithium iron phosphate |
Kapasidad sa baterya | 55.7kWh |
Energy density | 145Wh/kg |
Total battery voltage | 322V |
Charging method | Fast charging + slow charging |
Electronic control system brand | Dongfeng Huashen |
Pagkontrol sa configuration | |
ABS anti-lock | ● |
Internal nga configuration | |
Air conditioning adjustment form | Manual |
Power windows | ● |
Brake and braking | |
Front wheel brake | Drum type |
Rear wheel brake | Drum type |
