BREVE

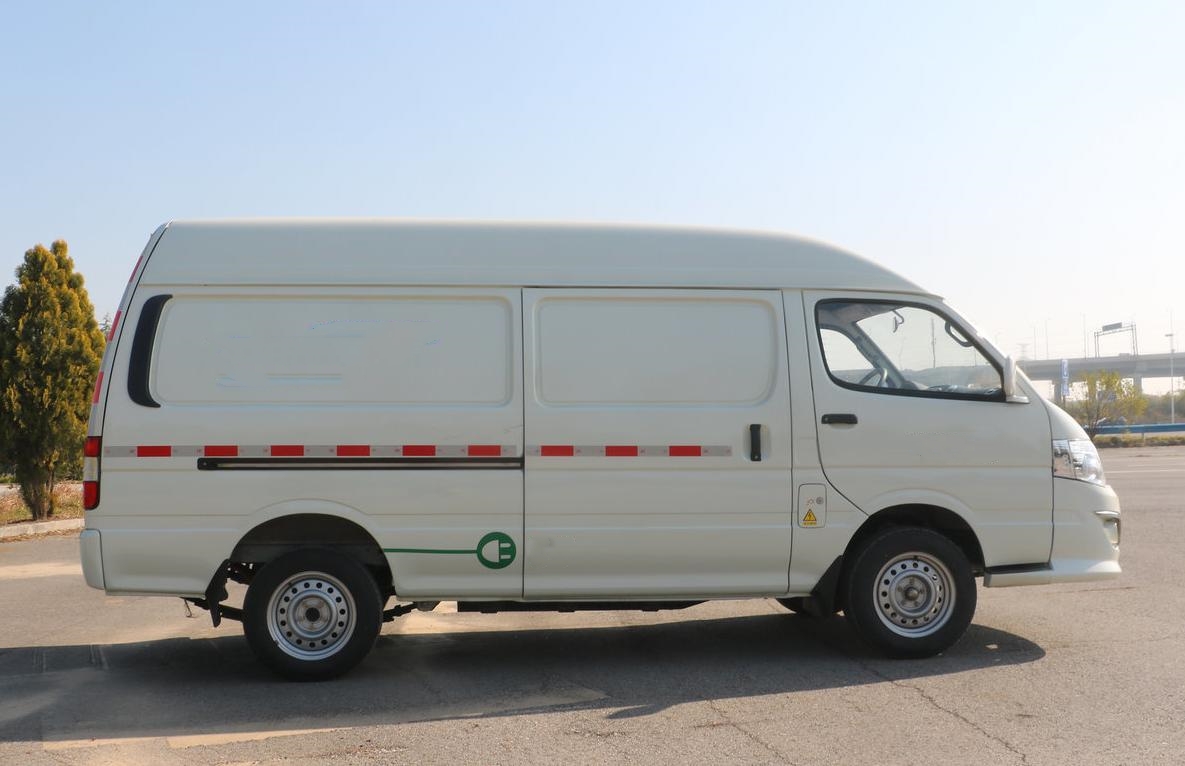

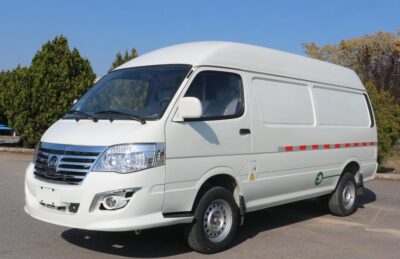

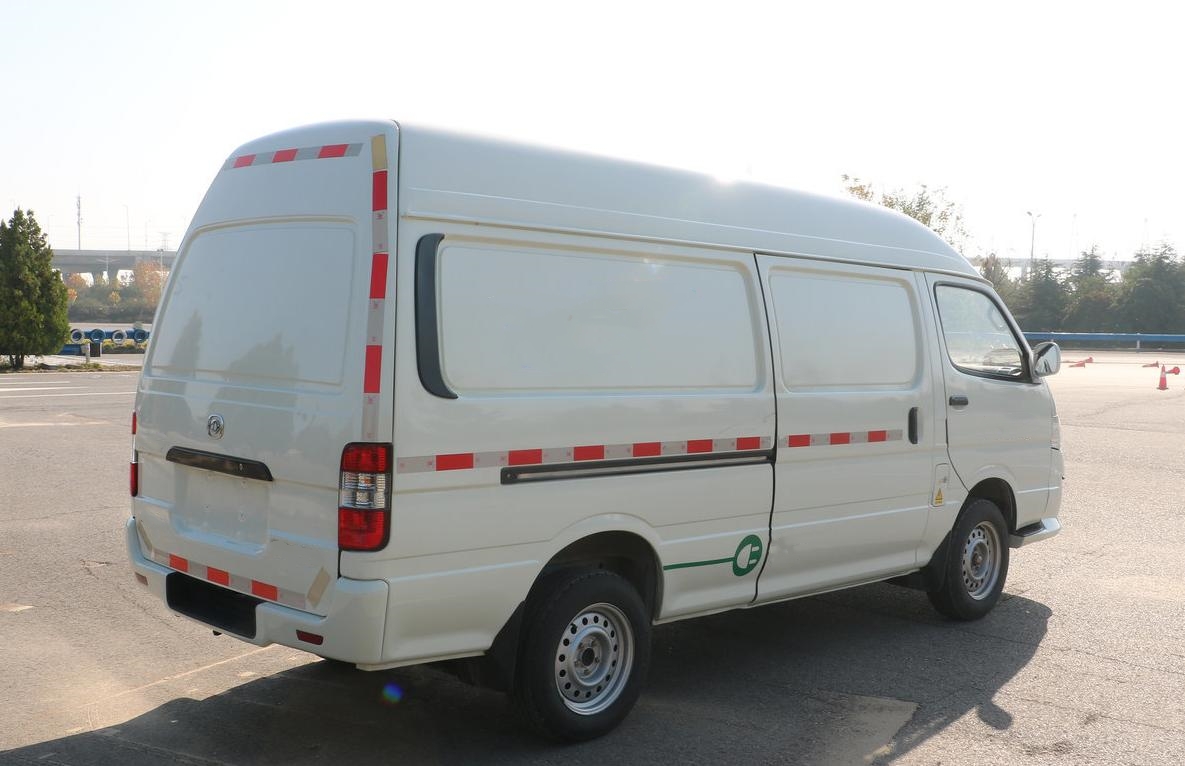

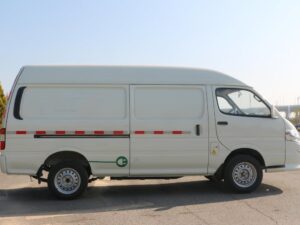

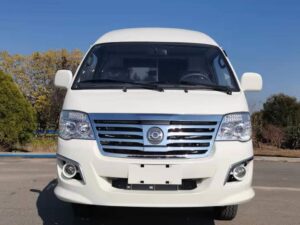

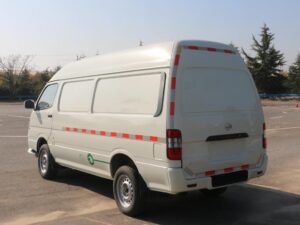

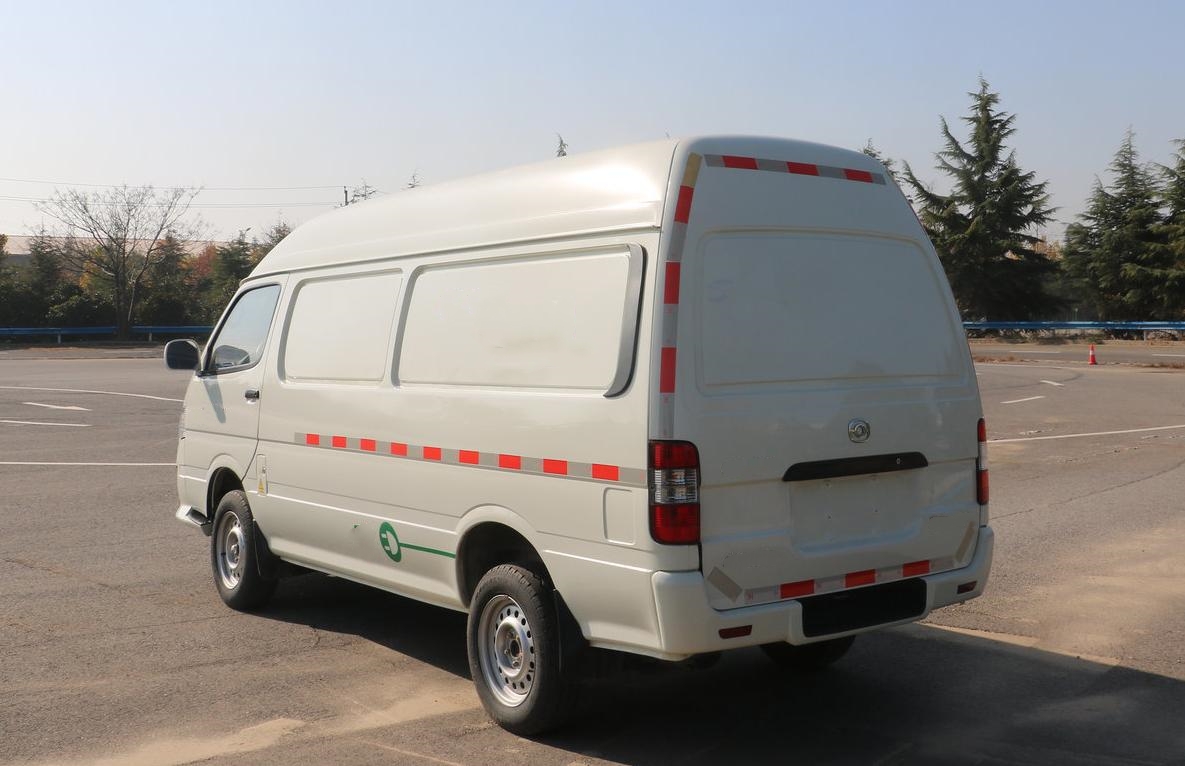

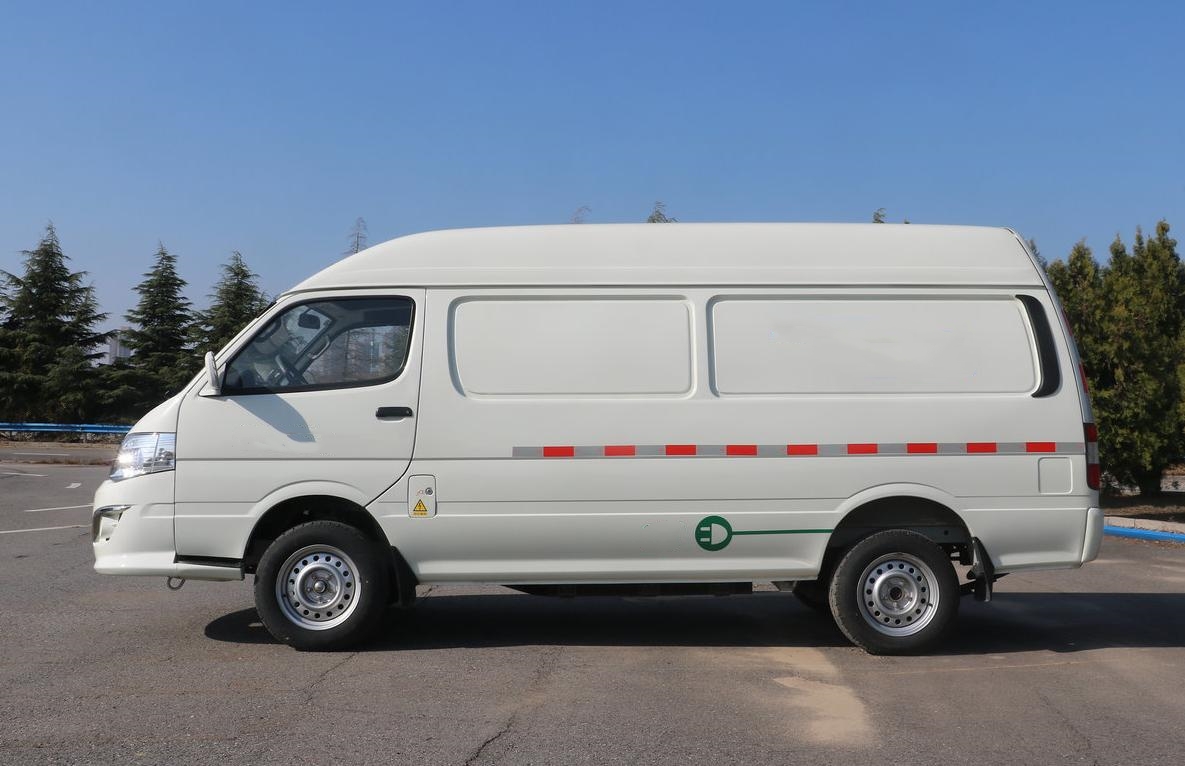

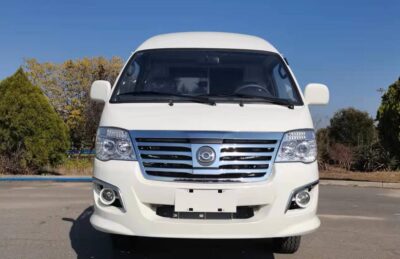

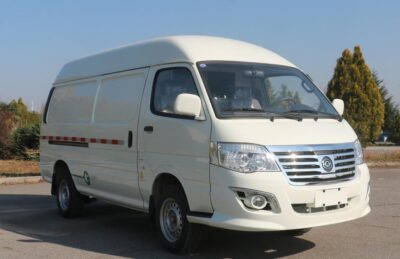

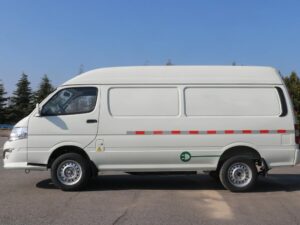

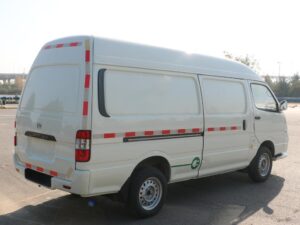

El Páncreas 3.5 Ton Electric Dry Van Truck is a modern and efficient vehicle designed for urban cargo transport and logistics. With its cutting-edge electric powertrain and spacious cargo compartment, this truck offers an eco-friendly and cost-effective solution for businesses focused on sustainable transportation.

Powered by a high-capacity lithium-ion battery, the Haima Electric Dry Van Truck delivers an impressive driving range on a single charge, making it perfect for daily urban deliveries. Its zero-emission motor helps businesses reduce their carbon footprint, supporting cleaner air and a more sustainable environment. The truck is designed to handle a 3.5-tonelada de carga, providing ample space for a wide range of goods, from retail products to smaller equipment.

El dry van cargo area ensures that items remain secure and protected from weather conditions, offering a reliable and safe transportation solution. The truck’s compact design allows for excellent maneuverability in crowded urban areas, ensuring efficient last-mile delivery. Además, its low operating and maintenance costs make it a cost-effective choice for businesses seeking to reduce their logistics expenses.

With features like a comfortable cabin, easy-to-use controls, and a focus on safety, el Páncreas 3.5 Ton Electric Dry Van Truck is an ideal choice for businesses looking for an environmentally friendly and efficient vehicle to enhance their urban logistics operations.

CARACTERÍSTICAS

El Páncreas 3.5 Tonelada Electric Dry Van Truck is a state-of-the-art electric vehicle designed to meet the demands of modern urban logistics. With its focus on sustainability, eficiencia, and practicality, this electric truck offers businesses a reliable and cost-effective solution for transporting goods in urban environments. Below is a detailed breakdown of the key features and benefits that make the Haima 3.5 Ton Electric Dry Van Truck a standout in the electric vehicle market.

1. Powerful Electric Powertrain

The Haima 3.5 Ton Electric Dry Van Truck is powered by a high-capacity lithium-ion battery and an advanced electric motor, providing robust performance while ensuring minimal environmental impact.

• Zero Emissions: The electric motor produces zero tailpipe emissions, making it an environmentally friendly alternative to traditional diesel or gasoline-powered trucks. This feature helps reduce air pollution and noise levels, contributing to cleaner, quieter urban areas.
• Extended Range: The lithium-ion battery provides a long driving range on a single charge, enabling the truck to complete daily urban deliveries without requiring frequent recharging. This makes it suitable for last-mile delivery operations and short to medium-range routes.
• Lower Operating Costs: Electric trucks generally have lower operating costs compared to their internal combustion counterparts. The Haima 3.5 Ton Electric Dry Van Truck benefits from lower energy costs (electricity versus fuel) and requires less maintenance due to the fewer moving parts in the electric motor, which helps businesses save money in the long term.

2. Spacious and Secure Cargo Compartment

The Haima Electric Dry Van Truck offers a spacious 3.5-ton payload capacity, making it ideal for a variety of cargo types. Whether for transporting retail goods, groceries, or light equipment, this truck ensures that businesses can handle their logistics needs with ease.

• Dry Van Design: The enclosed dry van cargo area provides protection from the elements, ensuring that goods are safe from rain, dust, and temperature fluctuations. This makes it an excellent choice for transporting sensitive or fragile items that require a controlled environment.
• Optimized Storage Space: The design of the cargo area maximizes usable space, allowing for easy loading and unloading of goods. This increases operational efficiency, enabling quicker turnaround times and improving overall productivity.
• Cargo Security: The truck’s design incorporates locking mechanisms and secure latches to keep cargo safe during transit. This ensures that valuable or sensitive items remain intact and protected.

3. Efficient Urban Mobility

El Páncreas 3.5 Ton Electric Dry Van Truck is designed for optimal maneuverability in crowded urban environments, where space can often be limited.

• Compact Dimensions: The truck’s compact size allows it to easily navigate through narrow streets, alleys, and busy urban areas, making it perfect for last-mile delivery in cities and suburbs.
• Agile Handling: With a tight turning radius and responsive handling, the Haima truck is easy to drive, even in traffic-heavy locations. This improves delivery efficiency, reducing the time spent on the road and optimizing fuel (electricity) usage.
• Enhanced Visibility: The design of the truck provides excellent visibility for the driver, ensuring safe operation in urban settings where pedestrians, cyclists, and other vehicles may be present.

4. Comfortable and Functional Driver Cabin

The Haima 3.5 Ton Electric Dry Van Truck prioritizes driver comfort and ease of use, making it ideal for long hours of city driving.

• Ergonomically Designed Cabin: The driver’s cabin is designed with ergonomics in mind, ensuring a comfortable experience during long driving hours. The controls are intuitively placed for ease of use, allowing the driver to focus on the road and the task at hand.
• Climate Control: The cabin is equipped with an air conditioning system, providing a comfortable driving environment regardless of the external weather conditions. This helps reduce driver fatigue and enhances concentration during the workday.
• User-Friendly Dashboard: The truck features a modern dashboard with clear and easy-to-read displays, offering real-time data on battery status, vehicle performance, and other important metrics. This allows the driver to monitor the truck’s performance and make informed decisions.

5. Advanced Safety Features

Safety is a top priority for the Haima 3.5 Ton Electric Dry Van Truck. The vehicle is equipped with a range of features designed to protect both the driver and cargo.

• Anti-lock Braking System (ABS): The ABS ensures that the truck remains stable and controllable during braking, especially on slippery or uneven road surfaces.
• Electronic Stability Control (ESC): ESC helps prevent rollovers and loss of control, particularly in challenging driving conditions or when navigating tight corners.
• Rearview Camera and Sensors: The truck is equipped with a rearview camera and parking sensors, aiding the driver when reversing or parking in tight spaces. This enhances safety when maneuvering in busy urban environments.
• Airbags and Safety Belt Systems: The cabin is equipped with airbags and advanced seatbelt systems, offering additional protection for the driver in the event of an accident.

6. Sustainable and Green Logistics Solution

El Páncreas 3.5 Ton Electric Dry Van Truck helps businesses reduce their environmental impact while maintaining efficient and reliable logistics operations.

• Eco-Friendly Operations: The truck’s electric powertrain significantly reduces the vehicle’s carbon footprint, supporting businesses’ sustainability initiatives and helping them meet environmental regulations.
• Government Incentives: Many governments offer subsidies and incentives for businesses that adopt electric vehicles, making the Haima 3.5 Ton Electric Truck an even more affordable choice for companies looking to go green.
• Reputation and Branding: Using electric vehicles also enhances a company’s reputation by demonstrating a commitment to sustainability and green practices, which can be an important differentiator in the marketplace.

7. Versatile Applications

The Haima 3.5 Ton Electric Dry Van Truck is highly versatile and can be used in a variety of industries.

• E-Commerce and Retail: The truck’s ample cargo space and ability to transport goods safely make it ideal for e-commerce businesses looking to handle urban deliveries efficiently.
• Food and Beverage Delivery: Its dry van design is perfect for transporting perishable goods, ensuring they stay fresh and secure during transit.
• Courier and Freight Services: The compact size and ease of operation make it a great option for courier services and small-scale freight transport, improving last-mile delivery efficiency.

Conclusion

El Páncreas 3.5 Ton Electric Dry Van Truck is a forward-thinking solution for businesses looking to reduce their carbon footprint while maintaining operational efficiency. With its powerful electric drivetrain, spacious cargo area, driver comfort, safety features, and cost-effectiveness, it offers a comprehensive package for modern logistics and urban transportation needs.

ESPECIFICACIÓN

Información básica
Distancia entre ejes	2890milímetros
Vehicle Length	5.33 metros
Vehicle Width	1.7 metros
Vehicle Height	2.066 metros
Gross Vehicle Mass	3.49 montones
Capacidad de carga nominal	1.82 montones
Peso del vehículo	1.54 montones
Velocidad máxima	100kilómetros por hora
CLTC Driving Range	245km
Electric Motor
Motor Brand	Hefei Sunshine
Motor Model	TZ220XS030D1SG
Tipo de motor	Motor síncrono de imán permanente
Potencia nominal	50kilovatios
Potencia máxima	80kilovatios
Par máximo	270Nuevo Méjico
Rated Torque of the Motor	130Nuevo Méjico
Peak Torque	270Nuevo Méjico
Tipo de combustible	Puro eléctrico
Cab Parameters
Number of Seat Rows	1
Batería
Marca de batería	CATL
Battery Model	L150V01
Tipo de batería	Batería de fosfato de hierro de litio
Capacidad de la batería	50.23kWh
Densidad de energía	140.4Wh/kg
Battery Rated Voltage	335V
Total Battery Voltage	335V
Charging Method	Fast Charging + Slow Charging
Charging Time	1.5 hours
Brand of the Electronic Control System	CATL
Vehicle Body Parameters
Vehicle Body Structure	Load-bearing Body
Número de asientos	2 seats
Parámetros del carro
Maximum Depth of the Carriage	3.275 metros
Maximum Width of the Carriage	1.565 metros
Carriage Height	1.465 metros
Carriage Volume	7.5 metros cúbicos
Dirección del chasis
Front Suspension Type	Suspensión independiente
Rear Suspension Type	Ballesta
Power Steering Type	Electric Power Steering
Parámetros de la puerta
Number of Doors	4
Side Door Type	Right-side Sliding Door
Tailgate Type	Hatchback
Wheel Braking
Especificación de la rueda delantera	195/70R15LT
Especificación de la rueda trasera	195/70R15LT
Front Brake Type	Freno de disco
Rear Brake Type	Freno de tambor
Safety Configurations
Remote Control Key	●
Vehicle Central Lock	●
Handling Configurations
Sistema de frenos antibloqueo ABS	●
Internal Configurations
Steering Wheel Material	Plastic
Steering Wheel Adjustment	●
Air Conditioning Adjustment Mode	Manual
Power Windows	●
Lighting Configurations
Front Fog Lights	●
Adjustable Headlight Height	●
