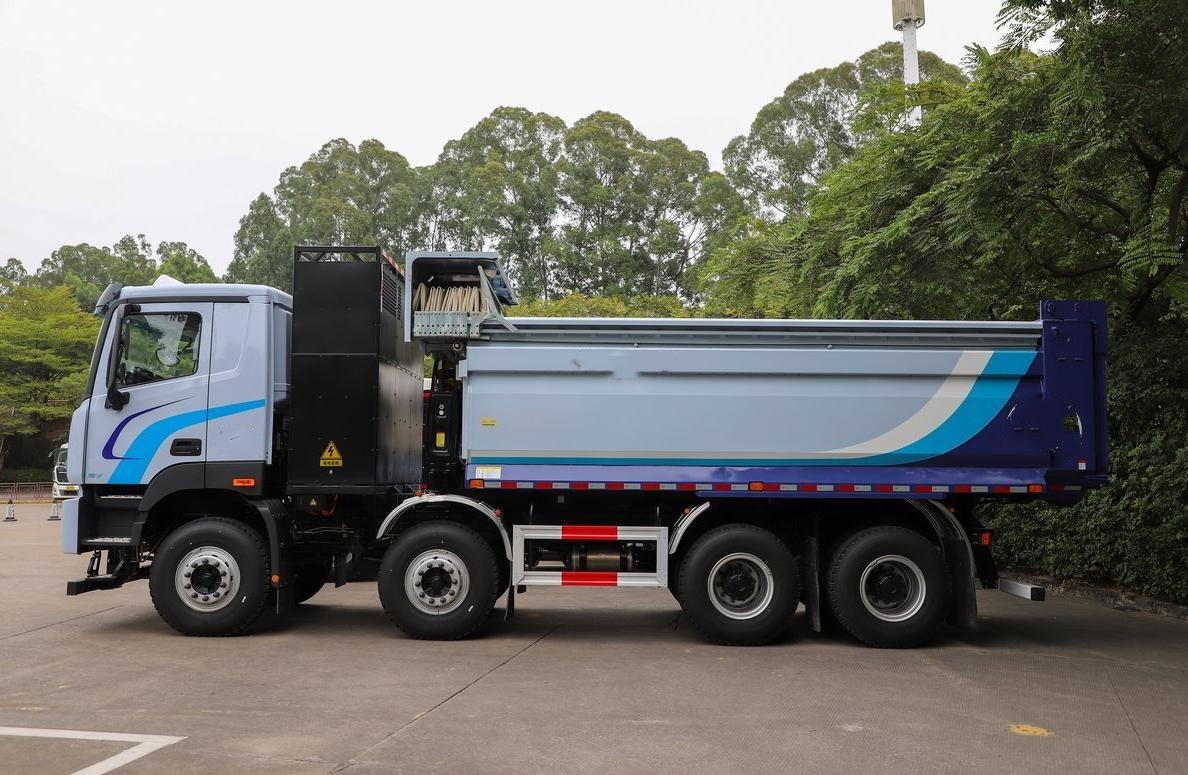

Gtl 31T 8X4 5.8-Meter Battery-Swapping Pure Electric Dump Truck

Gtl 31T 8X4 5.8-Meter Battery-Swapping Pure Electric Dump Truck

Announcement Model	BJ3319EVGRF-03
Drive Form	8X4
Wheelbase	2100 + 2750 + 1400mm
Body Length	9.67 mita
Body Width	2.55 mita
Body Height	3.55 mita
Gross Mass	31 tons
Maximum Speed	89 km/h

Description
Reviews (0)

BRIEF

The GTL 31T 8X4 5.8-meter battery-swapping pure electric dump truck is an advanced solution for heavy-duty material transportation. Its powerful design and innovative battery-swapping feature make it a standout in the electric vehicle market.

FEATURES

The GTL 31T 8X4 5.8-meter battery-swapping pure electric dump truck offers a range of impressive features.

The 8X4 configuration provides exceptional stability and traction, allowing it to handle heavy loads with ease, even in challenging road conditions.

The 31-ton payload capacity ensures high productivity, making it suitable for large-scale construction and mining projects.

The 5.8-meter dump body is spacious and well-designed for efficient loading and unloading of materials.

The battery-swapping technology is a key highlight. It enables rapid battery replacement, minimizing vehicle downtime and maximizing operational efficiency. This is a significant advantage over traditional charging methods, especially in applications where time is critical.

The pure electric drivetrain delivers powerful performance while emitting zero emissions, contributing to a cleaner and more sustainable environment.

The truck is likely equipped with advanced battery management systems to monitor battery health, charge levels, and temperature, ensuring optimal performance and longevity.

It may also have intelligent control systems that adjust power output based on the load and terrain, enhancing energy efficiency and range.

In terms of safety, it could incorporate features such as reinforced cabs, anti-rollover protection, and advanced braking systems to safeguard the driver and the vehicle.

Me kena ivakaraitaki, in a busy quarry or construction site, the GTL dump truck can quickly swap batteries and continue working without significant interruptions, transporting large volumes of materials efficiently and environmentally friendly.

Overall, the GTL 31T 8X4 5.8-meter battery-swapping pure electric dump truck combines robustness, efficiency, and eco-friendliness, making it a cutting-edge choice for heavy-duty material transportation.

SPECIFICATION

Basic Information
Announcement Model	BJ3319EVGRF-03
Drive Form	8X4
Wheelbase	2100 + 2750 + 1400mm
Body Length	9.67 mita
Body Width	2.55 mita
Body Height	3.55 mita
Gross Mass	31 tons
Rated Load	12.57 tons
Vehicle Weight	18.3 tons
Maximum Speed	89 km/h
Tonnage Level	Heavy Truck
Fuel Type	Pure Electric
Motor
Motor Brand	Tebija
Motor Model	TZ400XSTPG46
Motor Type	Permanent Magnet Synchronous Motor
Rated Power	260kW
Peak Power	400kW
Fuel Category	Pure Electric
Cargo Box Parameters
Cargo Box Form	Dump Type
Cargo Box Length	5.8 mita
Cargo Box Width	2.3 mita
Cargo Box Height	1.5 mita
Cab Parameters
Cab	GTL Medium-Long Body Flat-Top Standard Floor
Permitted Number of Passengers	2
Number of Seat Rows	Single-Row
Cab Lifting	Electric
Gearbox Parameters
Gearbox Model	Tebija TS-0624
Number of Gears	6
Shift Form	Automatic-Manual
Chassis Parameters
Allowable Load on Front Axle	6500/6500KG
Rear Axle Description	16T Benz Rear Axle
Allowable Load on Rear Axle	18000 (two-axle group) kg
Tire
Tire Specification	12.00R20 16PR
Number of Tires	12
Battery
Battery Brand	CATL
Battery Type	Lithium Iron Phosphate
Battery Capacity	350 kWh
Charging Method	Dual-Gun Direct Current
Control Configuration
ABS Anti-lock Braking System	●
Internal Configuration
Steering Wheel Adjustment	Manual
Multifunctional Steering Wheel	●
Air Conditioning Adjustment Form	Automatic
Power Windows	●
Electric Rearview Mirror	●
Remote Key	●
Electronic Central Lock	●
Multimedia Configuration
Colorful Large Screen on Center Console	●
Bluetooth/Car Phone	●
Lighting Configuration
Headlamp Height Adjustable	●
Brake System
Vehicle Brake Type	Air Brake
Front Wheel Brake	Drum Brake
Rear Wheel Brake	Drum Brake
