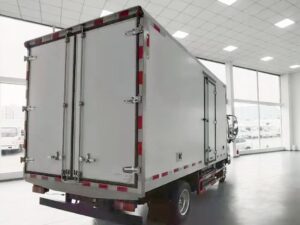

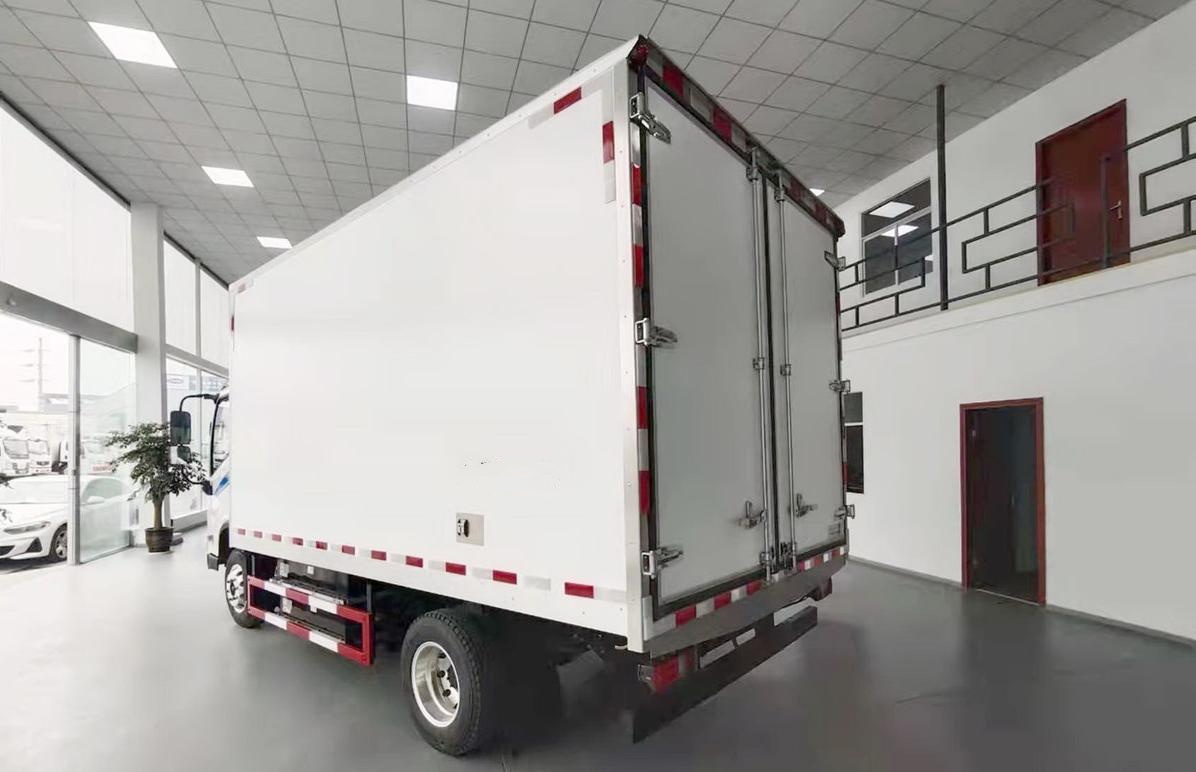

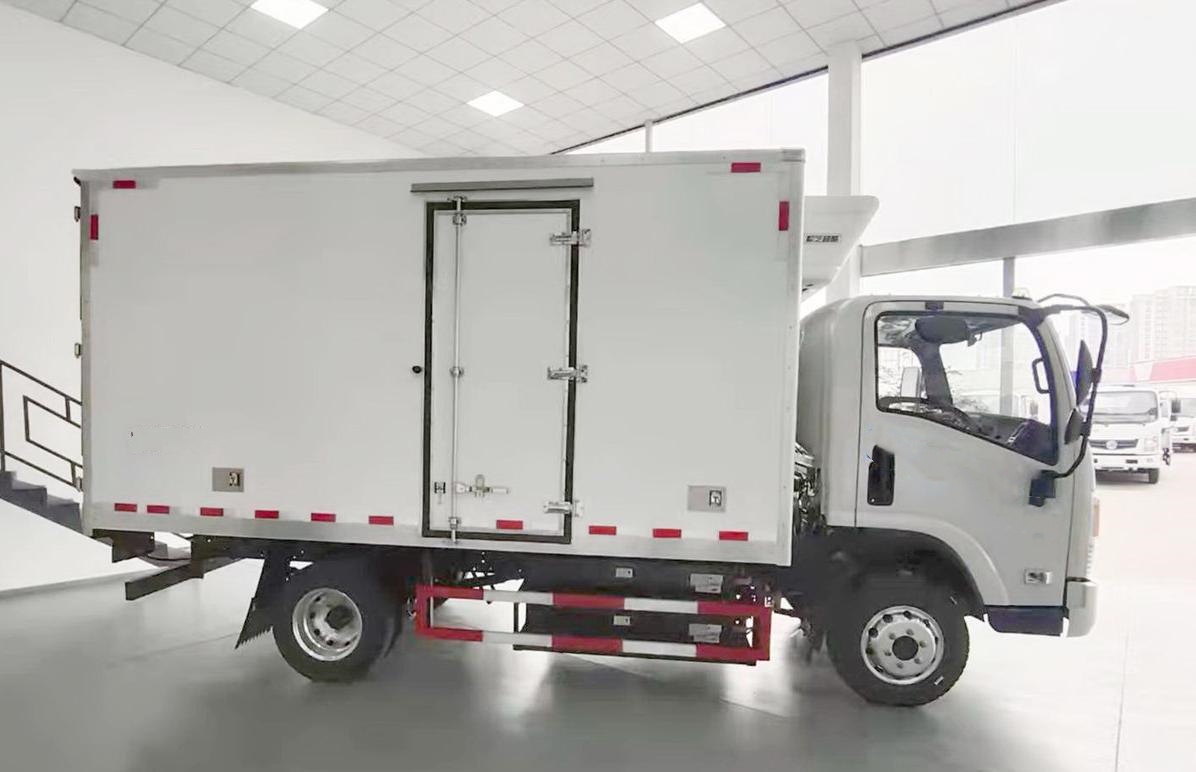

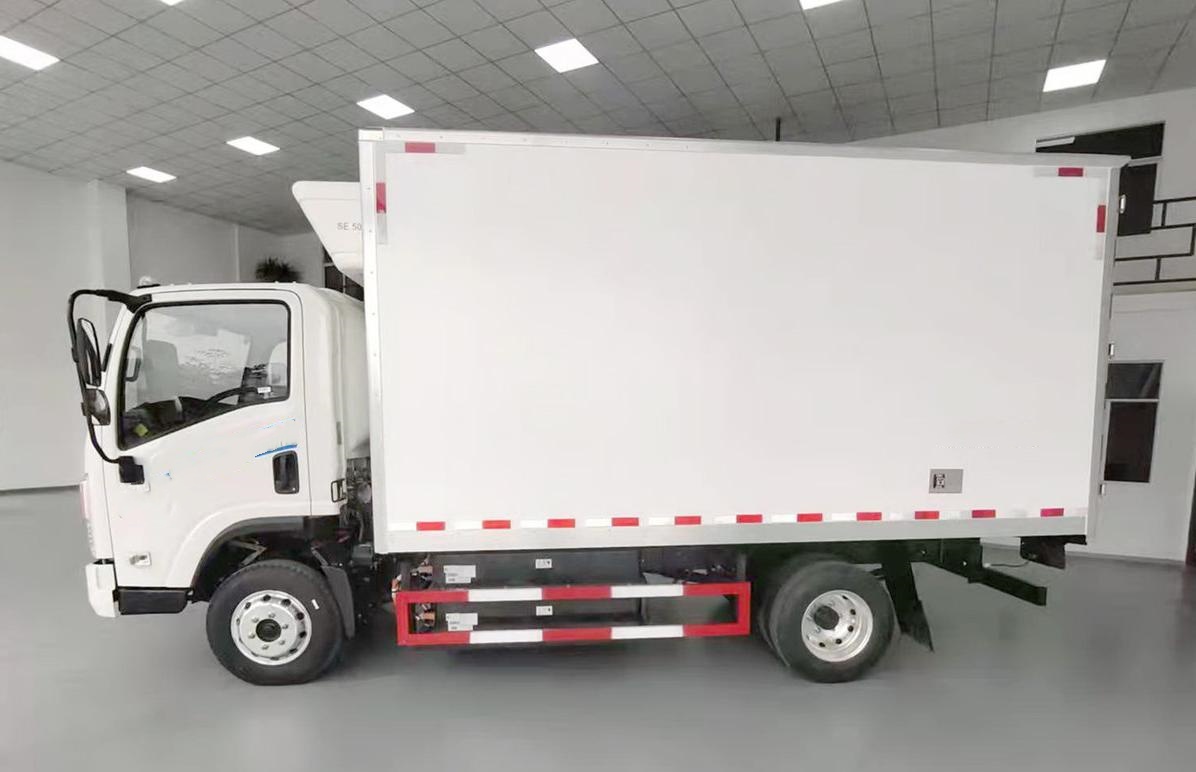

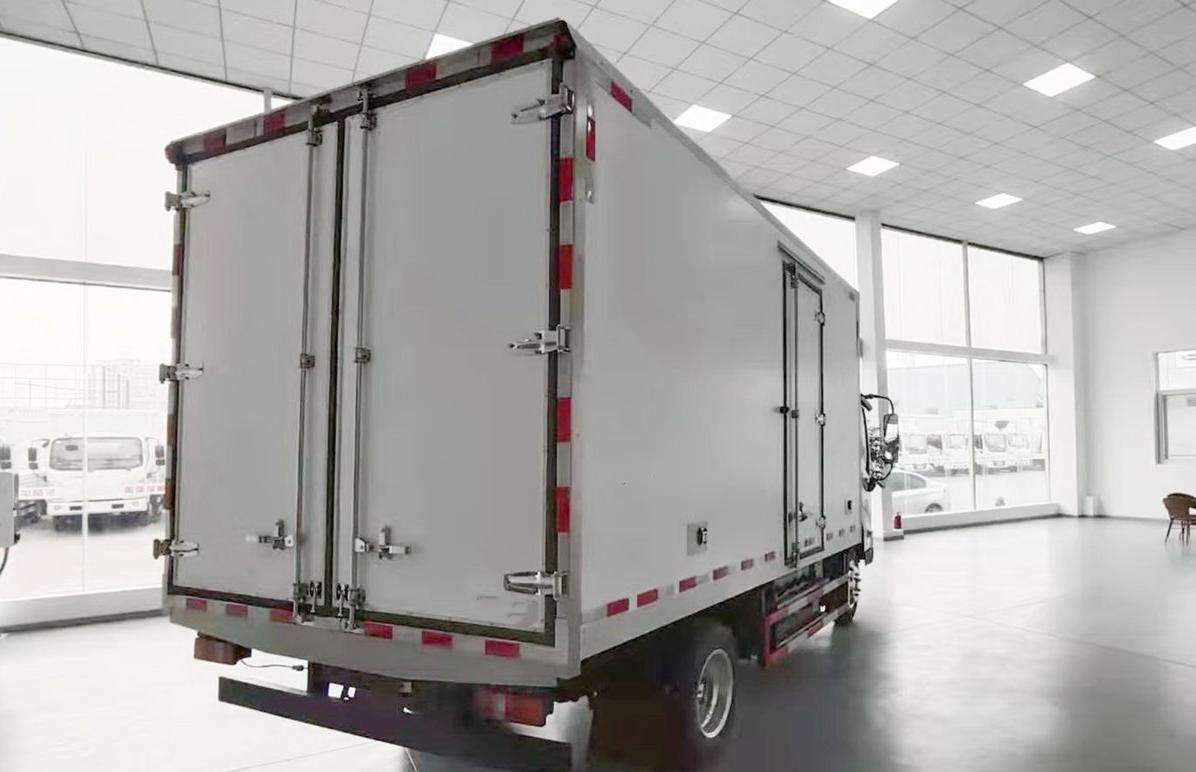

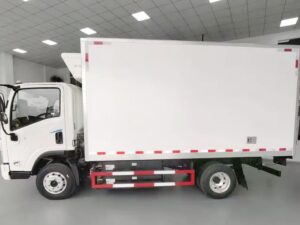

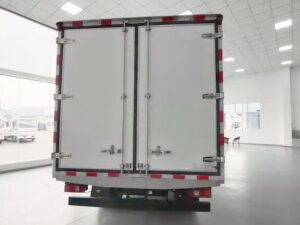

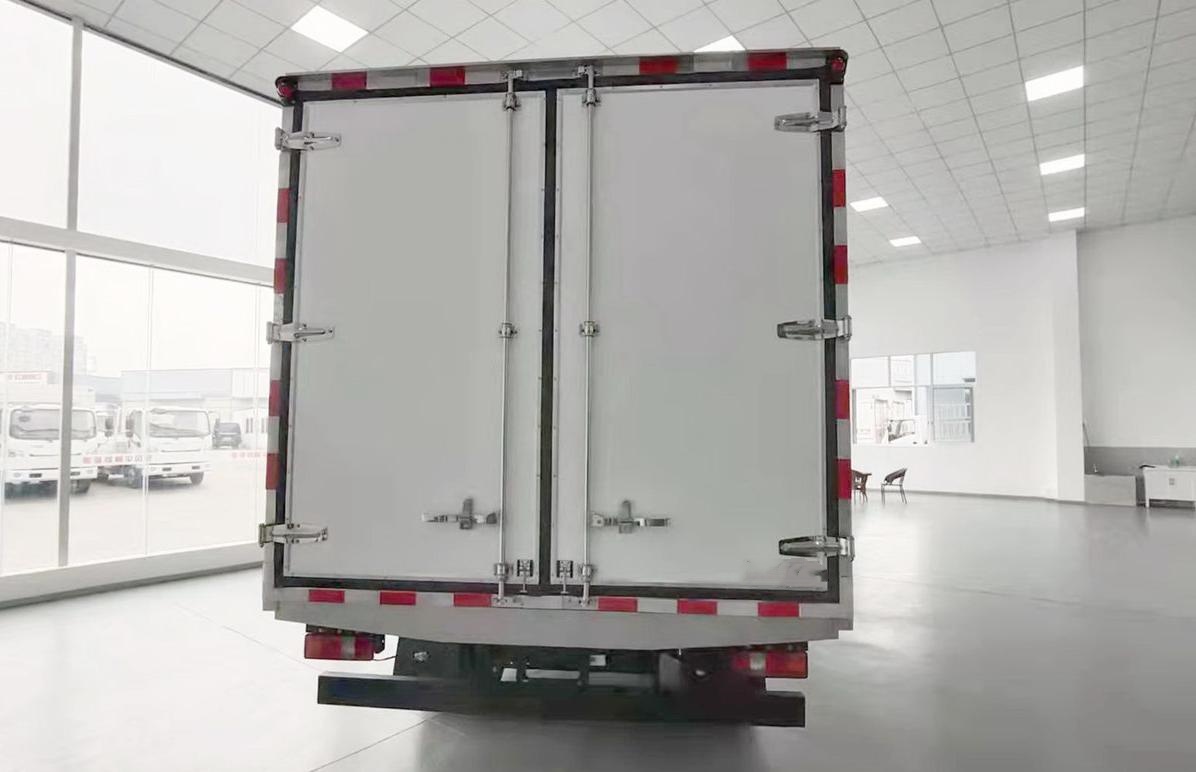

T19 4.5T 4-Meter Pure Electric Refrigerated Truck (China VI)

T19 4.5T 4-Meter Pure Electric Refrigerated Truck (China VI)

Tshaj Tawm Qauv	EQ5040XLCLBEV
Tsav daim ntawv	4X2
Wheelbase	3300mm
Body Length	5.995 meters
Body Width	2.25 meters
Body Height	3.1 meters
Tsheb hnyav	3.25 tons
Rated Load	1.115 tons
Tag nrho pawg	4.495 tons
Qhov siab tshaj plaws	90 km/h
Factory-marked cruising range	260 km

Kev piav qhia
Kev tshuaj xyuas (0)

BRIEF

The T19 4.5T 4-meter pure electric refrigerated truck (china VI) is a state-of-the-art vehicle designed to meet the rigorous demands of modern refrigerated transportation with an eco-friendly approach.

NTA

The T19 4.5T 4-meter pure electric refrigerated truck (China VI) comes with a set of remarkable features.

It has a payload capacity of 4.5T, allowing for the transportation of a significant amount of goods within the 4-meter refrigerated compartment. This size is suitable for a variety of delivery needs, whether it’s for fresh produce, pharmaceuticals, or other temperature-sensitive items.

The vehicle’s pure electric drivetrain adheres to China VI emission standards, contributing to a cleaner environment and lower carbon footprint. The electric power source offers smooth and quiet operation, reducing noise pollution in urban and residential areas.

The refrigeration system is likely advanced and precise, maintaining a stable and controlled temperature throughout the compartment. It may have features like rapid cooling, multiple temperature zones, and intelligent temperature monitoring to ensure the quality and freshness of the goods.

The battery pack provides a sufficient range to handle typical delivery routes, and it might support fast charging options to minimize downtime and keep the truck operational for longer periods.

The truck could be equipped with modern safety features such as anti-lock brakes, electronic stability control, and advanced driver assistance systems to enhance safety on the road.

The cabin is designed for driver comfort and convenience, with ergonomic seating, intuitive controls, and a comprehensive dashboard display.

For instance, in the food distribution industry or medical logistics, the T19 refrigerated truck can ensure the timely and reliable transportation of perishable goods while meeting the strict environmental and quality standards.

Overall, the T19 4.5T 4-meter pure electric refrigerated truck (China VI) combines performance, reliability, and environmental consciousness to provide an efficient solution for modern refrigerated transportation.

SPECIFICATION

Cov ntaub ntawv yooj yim
Tshaj Tawm Qauv	EQ5040XLCLBEV
Tsav daim ntawv	4X2
Wheelbase	3300mm
Body Length	5.995 meters
Body Width	2.25 meters
Body Height	3.1 meters
Tsheb hnyav	3.25 tons
Rated Load	1.115 tons
Tag nrho pawg	4.495 tons
Qhov siab tshaj plaws	90 km/h
Place of Origin	Wuhan, Hubei
Factory-marked cruising range	260 km
Fuel Type	Pure Electric
Motor
Motor Brand	Nanjing Yuebo
Motor Model	TZ220XS-YBM400
Hom Tsav	Permanent Magnet Synchronous Motor
Peak zog	176kW
Roj qeb	Pure Electric
Cargo Box Parameters
Cargo Box Length	4 meters
Cargo Box Dav	2.09 meters
Cargo Box Height	2 meters
Chassis Parameters
Chassis Series	Huashen T19
Chassis Model	EQ1040TLEVJ1
Number of Spring Leaves	3/3
Front Axle Load	1800KG
Rear Axle Load	2695KG
Tire
Tyre Specification	6.50R16LT 12PR
Number of Tire	6
Roj teeb
Roj teeb Hom	CATL
Hom roj teeb	Lithium Hlau Phosphate
Roj teeb muaj peev xwm	107 kWh
