T5 4.5T 3.94-Meter Single-Row Plug-In Range-Extended Hybrid Power Refrigerated Truck

T5 4.5T 3.94-Meter Single-Row Plug-In Range-Extended Hybrid Power Refrigerated Truck

Tshaj Tawm Qauv	BYD5040XLCHEV1
Tsav daim ntawv	4X2
Wheelbase	3360mm
Body Length	5.995 meters
Body Width	2.26 meters
Body Height	3.25 meters
Tsheb hnyav	3.45 tons
Rated Load	0.85 tons
Tag nrho pawg	4.495 tons
Qhov siab tshaj plaws	100 km/h
Factory-marked cruising range	650 km

Kev piav qhia
Kev tshuaj xyuas (0)

BRIEF

The T5 4.5T 3.94-meter single-row plug-in range-extended hybrid power refrigerated truck is an innovative vehicle designed to offer a balance of performance and energy efficiency for refrigerated transportation.

NTA

The T5 4.5T 3.94-meter single-row plug-in range-extended hybrid power refrigerated truck boasts a variety of impressive features.

With a payload capacity of 4.5T, it can handle a significant load of perishable goods. The 3.94-meter refrigerated compartment provides sufficient space for various types of cargo.

The single-row design offers a focused driving environment for the driver.

The plug-in range-extended hybrid power system is a key feature. It combines the benefits of electric power for short trips and the extended range provided by the hybrid component for longer distances, offering flexibility and reducing range anxiety.

The refrigeration system is likely advanced and efficient, maintaining a precise and stable temperature within the compartment to ensure the quality and freshness of the transported goods.

The vehicle’s battery pack can be charged through a plug-in connection, and the hybrid system kicks in when needed to extend the driving range. This not only reduces fuel consumption but also lowers emissions.

It may come equipped with smart energy management systems that optimize the use of electric and hybrid power based on driving conditions.

Safety features could include anti-lock brakes, traction control, and a comprehensive suite of airbags.

The interior of the cabin is likely designed with driver comfort in mind, featuring ergonomic seating, intuitive controls, and modern infotainment options.

For example, in regional delivery operations or where variable distances are involved, the T5 refrigerated truck can adapt to different routes and energy requirements, providing a reliable and efficient transportation solution.

Overall, the T5 4.5T 3.94-meter single-row plug-in range-extended hybrid power refrigerated truck combines power, efficiency, and temperature control capabilities to meet the diverse needs of the refrigerated transportation sector.

SPECIFICATION

Cov ntaub ntawv yooj yim
Tshaj Tawm Qauv	BYD5040XLCHEV1
Tsav daim ntawv	4X2
Wheelbase	3360mm
Body Length	5.995 meters
Body Width	2.26 meters
Body Height	3.25 meters
Tsheb hnyav	3.45 tons
Rated Load	0.85 tons
Tag nrho pawg	4.495 tons
Qhov siab tshaj plaws	100 km/h
Place of Origin	Shenzhen, Guangdong
Factory-marked cruising range	650 km
Fuel Type	Hybrid
Engine Parameters
Engine Model	BYD476ZQG
Number of Cylinders	4 cylinders
Displacement	1.5L
Emission Standard	National IV
Maximum Output Power	104kW
Maximum Horsepower	141 horsepower
Motor
Motor Brand	BYD
Motor Model	TZ200XSY
Hom Tsav	Permanent Magnet Synchronous Motor
Peak zog	150kW
Rated zog	70kW
Roj qeb	Hybrid

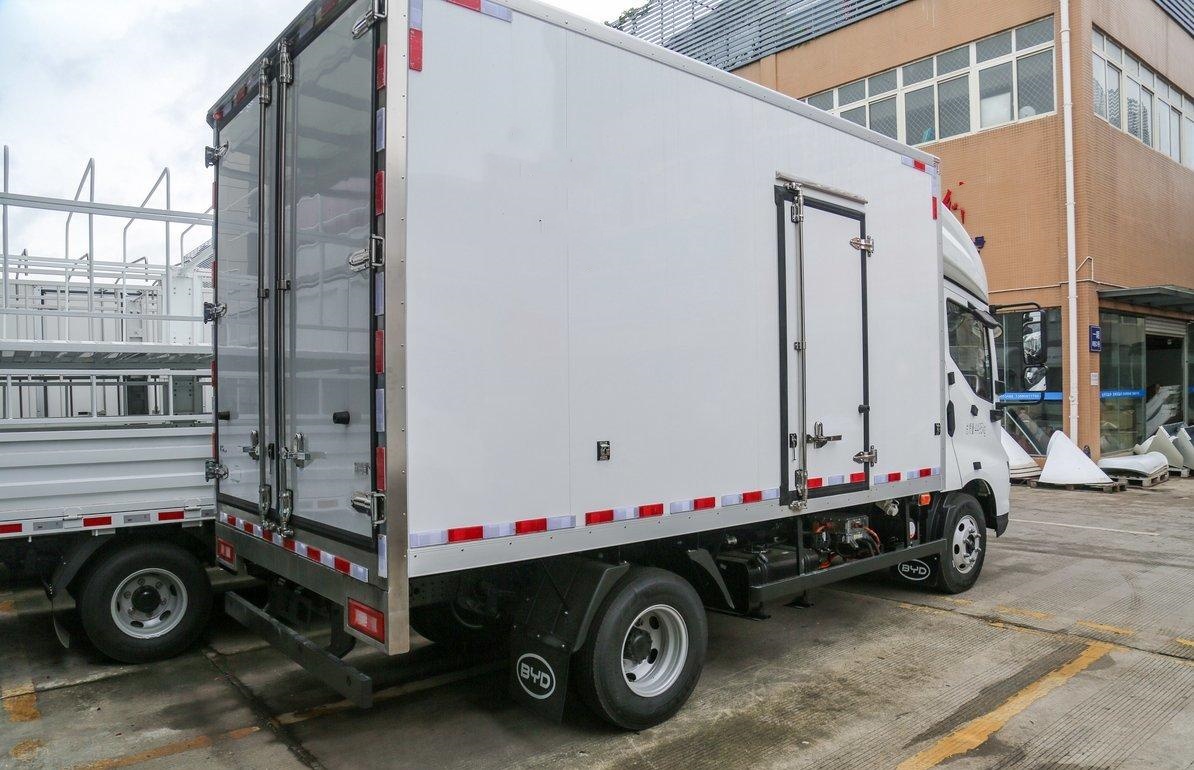

Cargo Box Parameters
Cargo Box Length	3.94 meters
Cargo Box Dav	2.1 meters
Cargo Box Height	2.1 meters

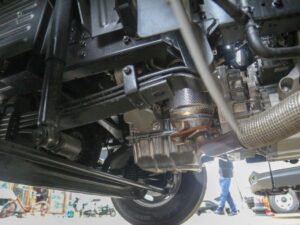

Chassis Parameters
Chassis Series	BYD
Chassis Model	BYD1040A3HEVC1
Number of Spring Leaves	3/5 + 6
Front Axle Load	2020KG
Rear Axle Load	2475KG
Tire

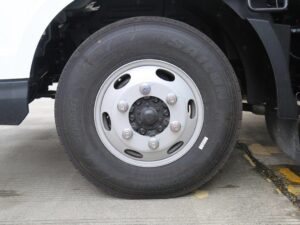

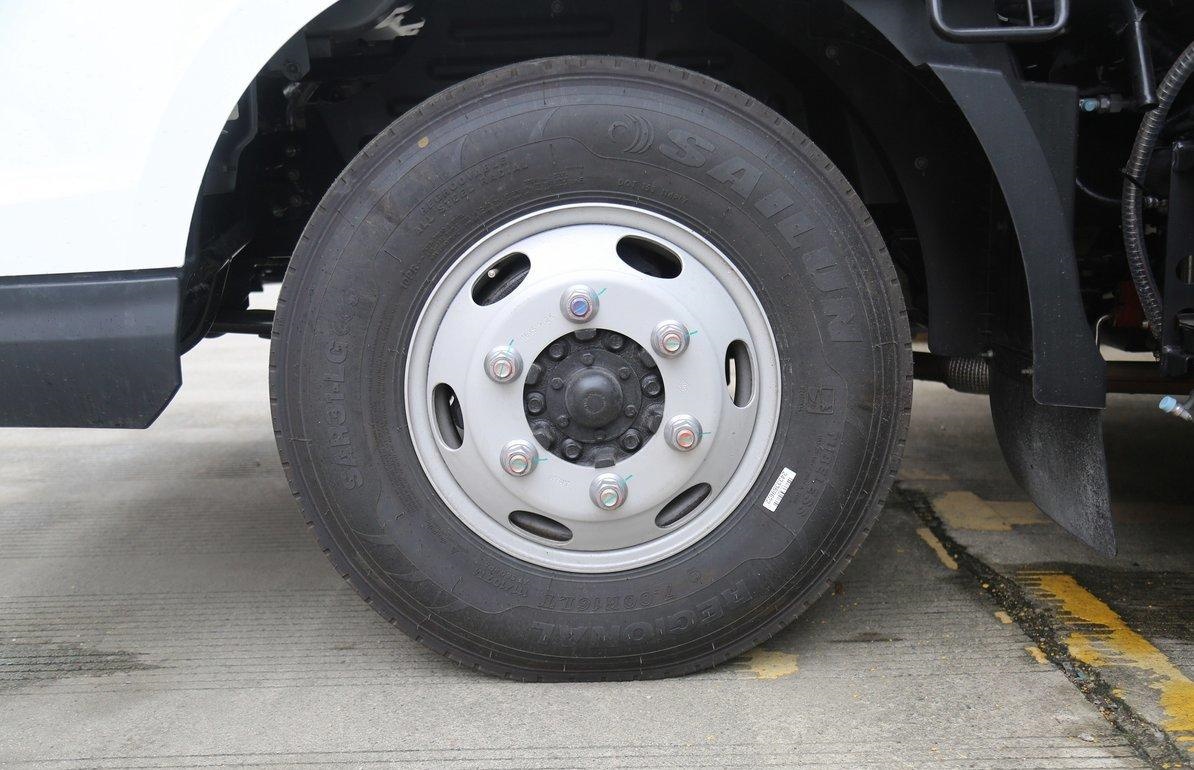

Tyre Specification	7.00R16LT 10PR
Number of Tire	6

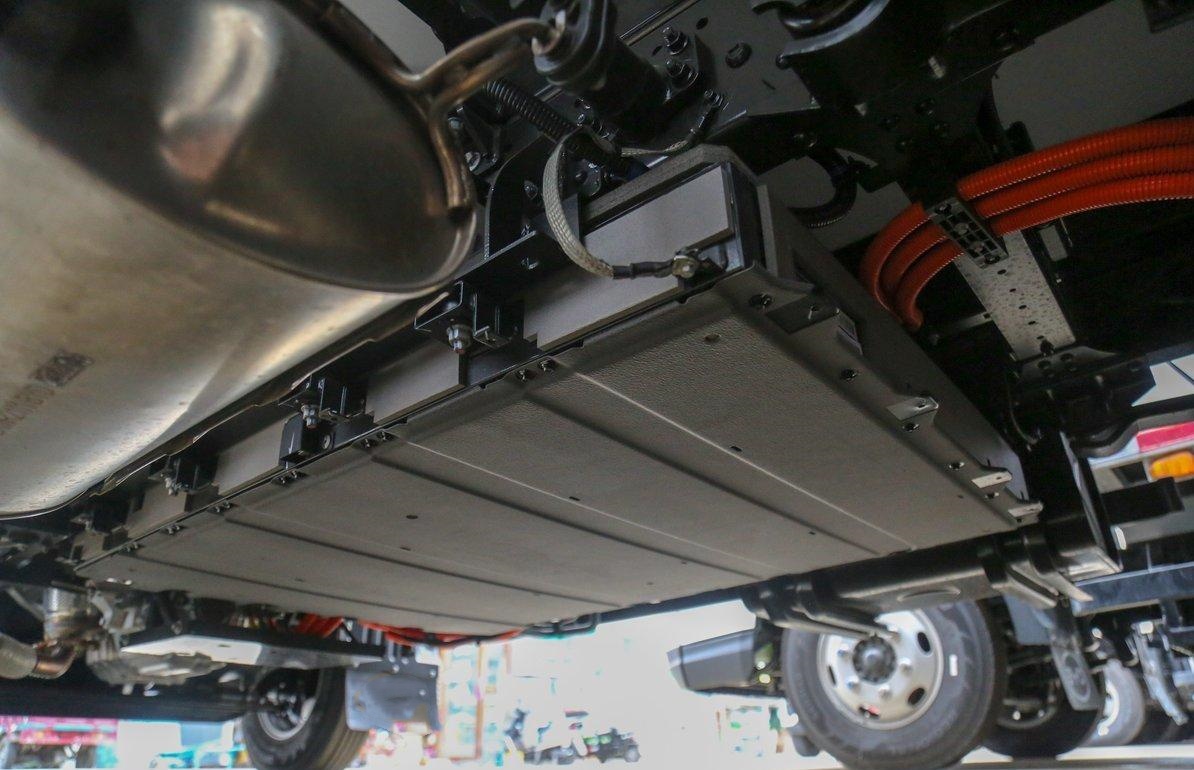

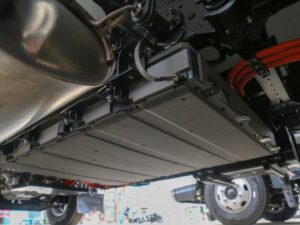

Roj teeb
Roj teeb Hom	Fudi
Hom roj teeb	Lithium Iron Phosphate Battery
Roj teeb muaj peev xwm	18.3 kWh
