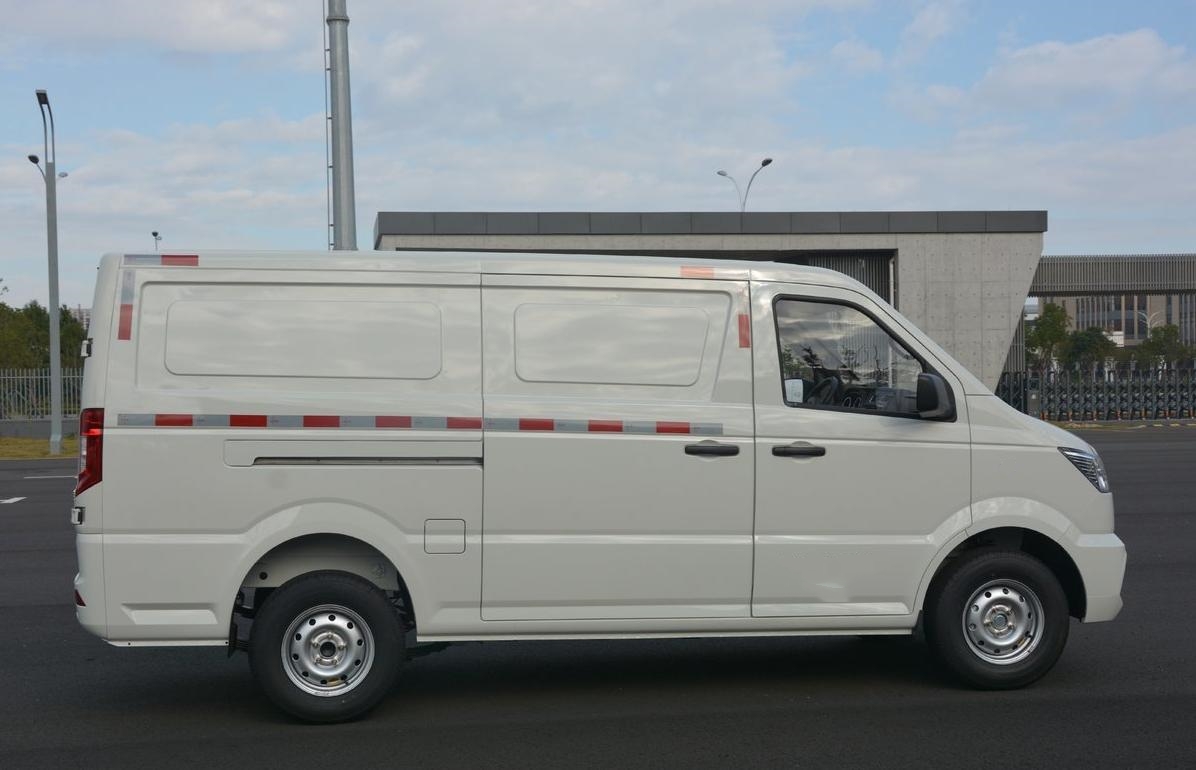

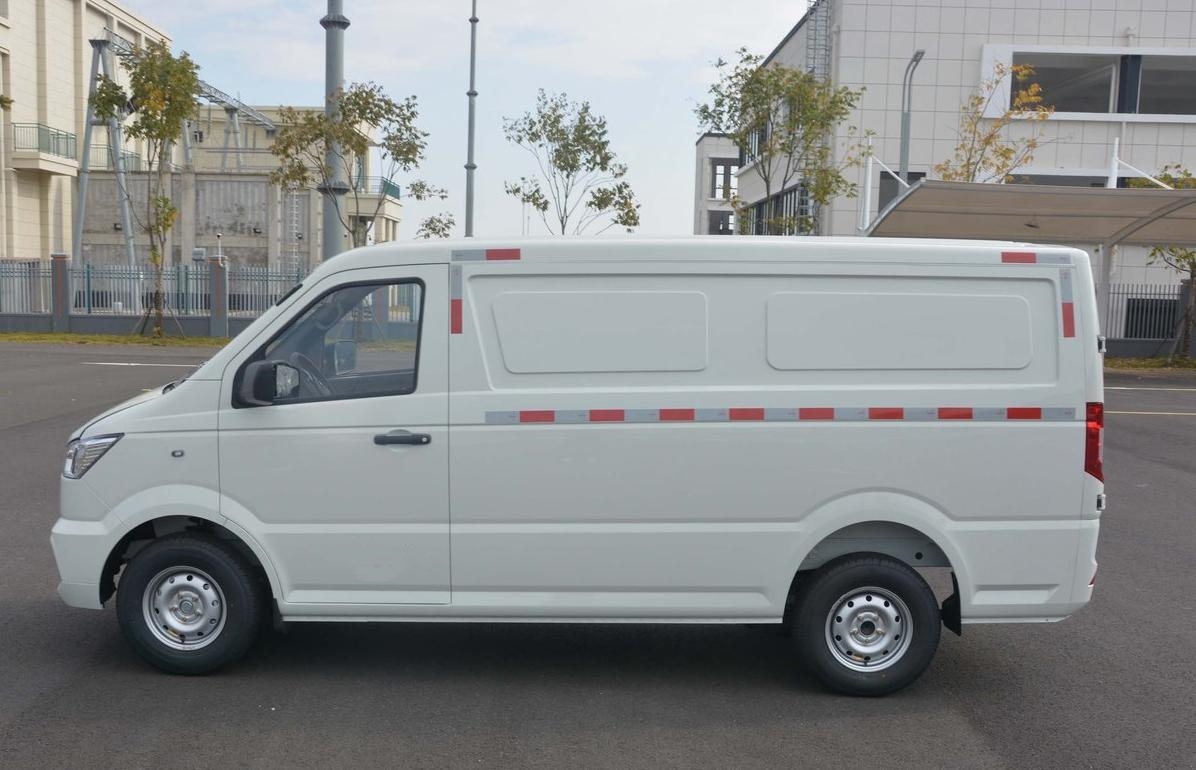

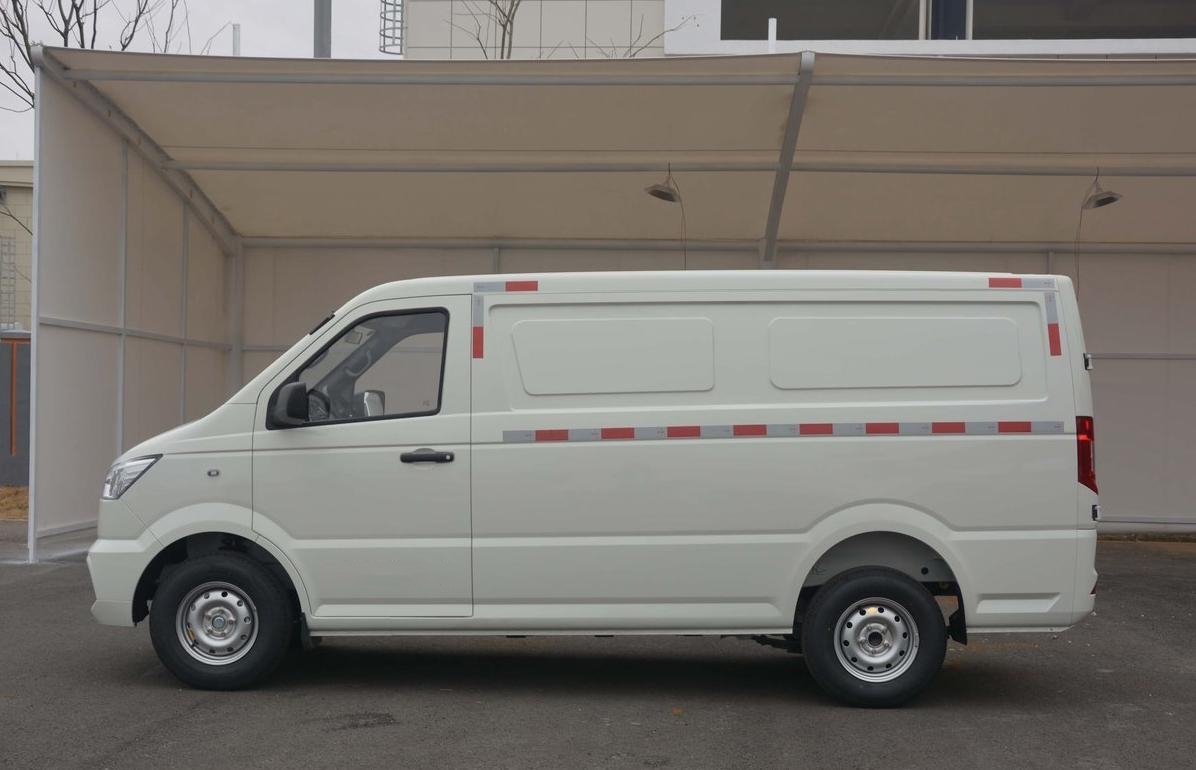

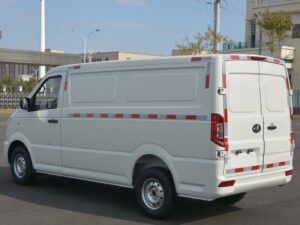

Jiao 3.1 Tons Eletric Dry Van Truck

ಫಿಲ್ಟರ್

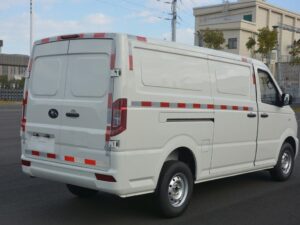

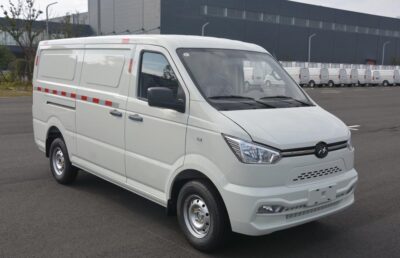

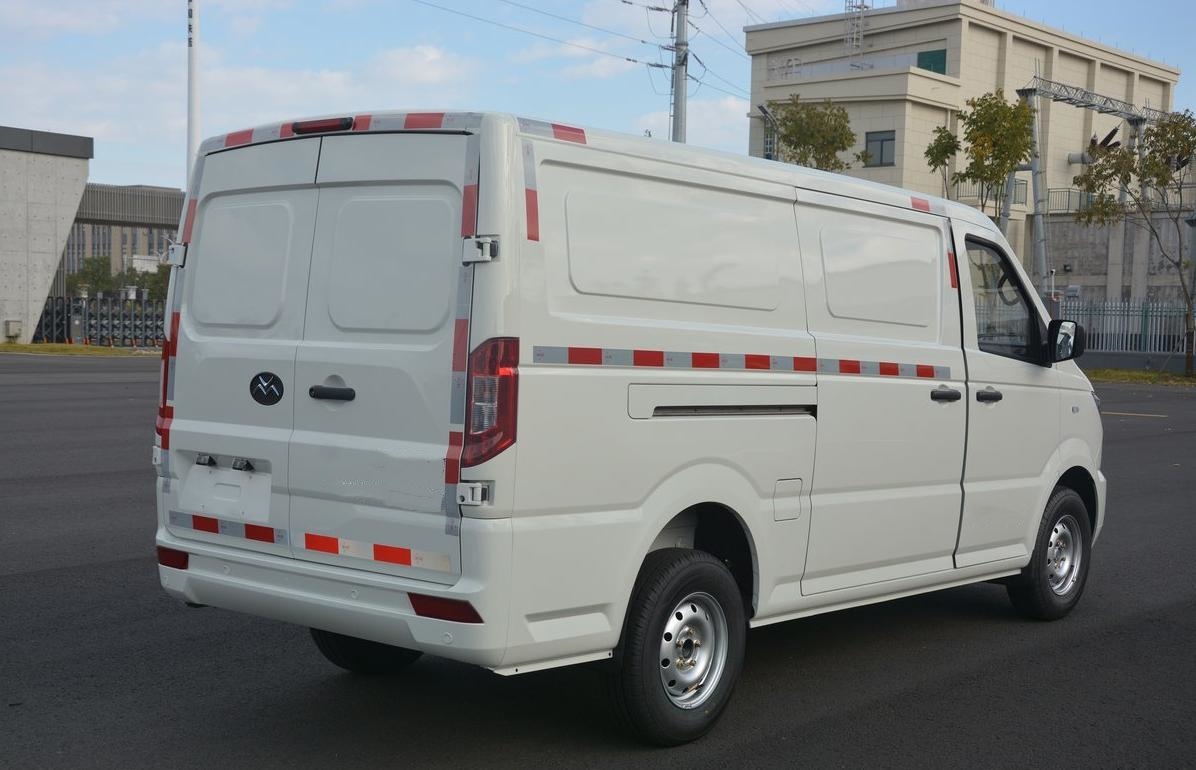

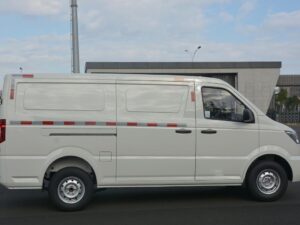

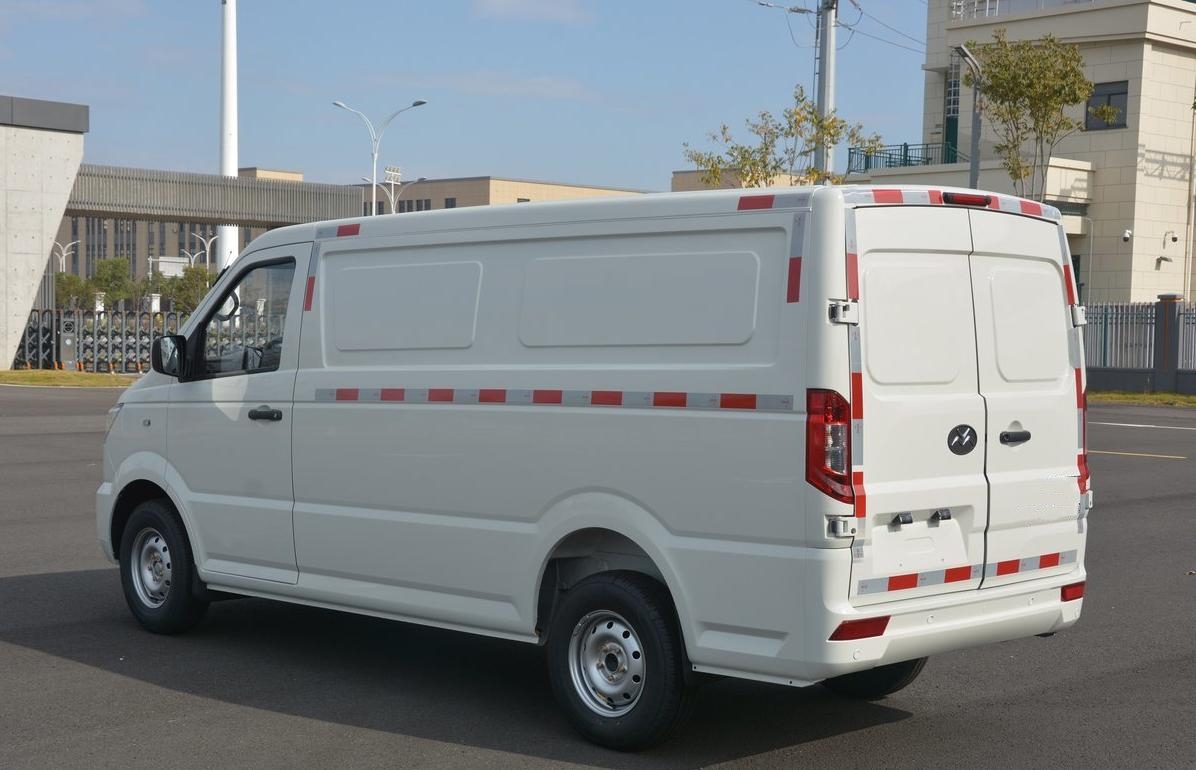

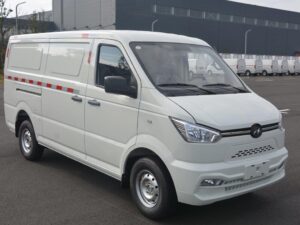

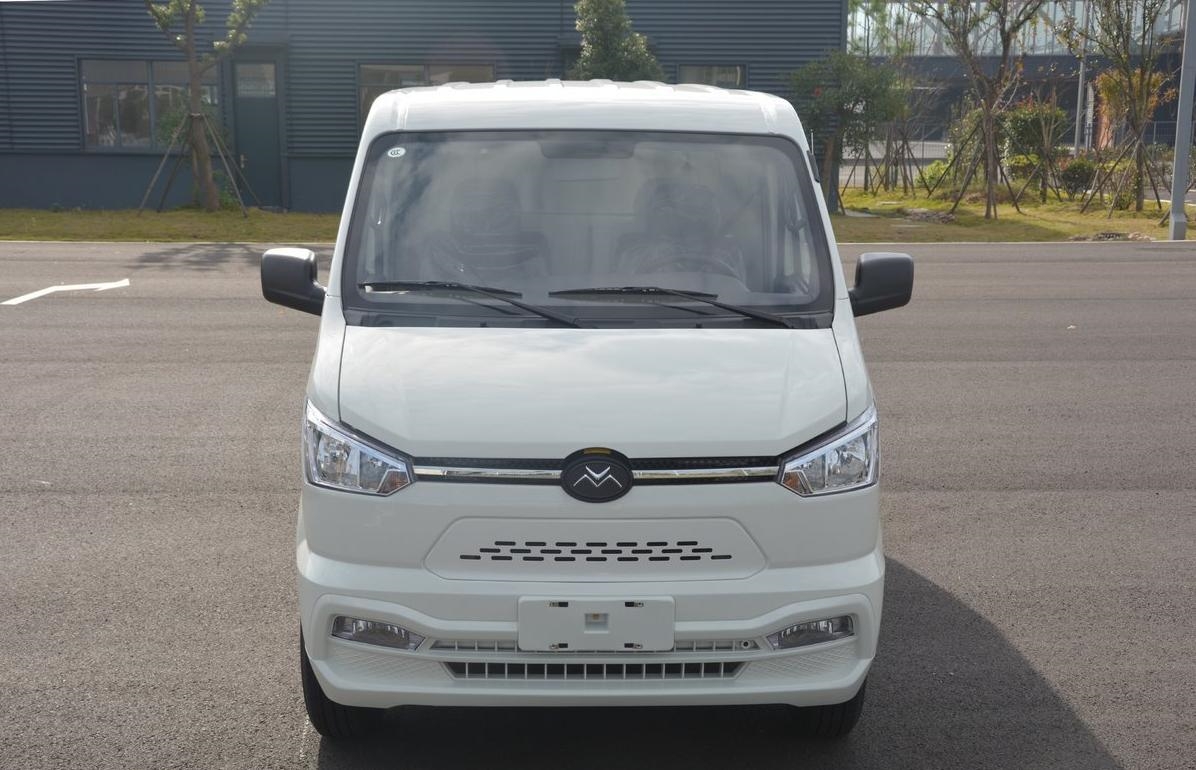

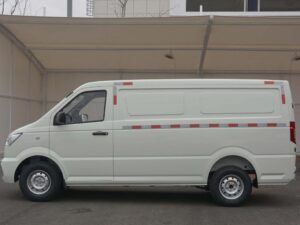

Jiao 3.1 Tons Eletric Dry Van Truck

CLTC Driving Range	260ಕಿಮೀ
Battery Brand	Lishen
Battery Type	Lithium Iron Phosphate Lithium-ion
Battery Capacity	41.6kWh
Energy Density	135Wh/kg

ವಿವರಣೆ

BRIEF

ಯಾನ Jiao 3.1 Tons Electric Dry Van Truck is an innovative and efficient vehicle designed for transporting goods in a protected environment.

With a payload capacity of 3.1 ಟನ್, it can carry a variety of items. Its electric power system makes it environmentally friendly, operating quietly and producing no tailpipe emissions.

The dry van body provides a sealed and secure space, protecting the cargo from the elements and potential damage during transit.

Equipped with a reliable electric drive system, it offers sufficient power for smooth travel on different terrains. The truck also features advanced control systems for easy operation.

ಒಟ್ಟಾರೆ, the Jiao 3.1 Tons Electric Dry Van Truck combines functionality, environmental friendliness, and reliability, making it a great choice for urban delivery and short-haul transportation of goods.

ವೈಶಿಷ್ಟ್ಯಗಳು

The Jiao 3.1 Tons Electric Dry Van Truck is a remarkable vehicle that combines multiple features to offer an efficient and reliable solution for transporting goods, especially in urban and short-haul scenarios.

1.Payload Capacity and Versatility
With a payload capacity of 3.1 ಟನ್, this electric dry van truck can handle a diverse range of cargo. It is suitable for transporting various packaged goods, small to medium-sized equipment, and other items commonly found in commercial deliveries. Its versatility makes it a valuable asset for businesses involved in local distribution, such as courier services, grocery deliveries, and small-scale manufacturing logistics.

2.Electric Power and Environmental Friendliness
Powered by electricity, the Jiao truck stands out for its environmental advantages. It operates quietly, significantly reducing noise pollution compared to traditional diesel-powered trucks. Moreover, it produces zero tailpipe emissions, contributing to cleaner air in urban areas and along delivery routes. This makes it an ideal choice for environmentally conscious businesses and for operations in areas with strict environmental regulations.

3.Secure and Protective Dry Van Body
The dry van body of the truck provides a sealed and secure space for the cargo. Made of durable materials, it protects the goods from external elements like rain, snow, dust, and sunlight. Additionally, it safeguards the cargo from potential damage during transit, such as impacts or vibrations. The van’s design ensures that the contents remain intact and in good condition until they reach their destination.

4.Powerful Electric Drive System
Equipped with a reliable electric drive system, the truck offers sufficient power for smooth travel on various terrains. It can navigate through city streets, suburban roads, and even some light off-road conditions with ease. The electric motor provides the necessary torque for efficient acceleration and deceleration, allowing the truck to handle the loaded weight without sacrificing performance.

5.User-Friendly Control Systems
The Jiao 3.1 Tons Electric Dry Van Truck features advanced control systems that make operation intuitive and easy. The driver can easily manage driving functions such as speed control, braking, and direction changes through a well-designed control panel. These user-friendly controls enhance the overall efficiency and safety of the transportation process.

ಕೊನೆಯಲ್ಲಿ, the Jiao 3.1 Tons Electric Dry Van Truck’s combination of these features makes it an excellent choice for transporting goods in a clean, secure, and efficient manner, meeting the diverse needs of modern-day delivery and logistics operations.

SPECIFICATION

ಮೂಲಭೂತ ಮಾಹಿತಿ
ಗಾಲಿ ಬೇಸ್	3050ಮಿಮೀ
Vehicle Length	4.865 ಮೀಟರ್
Vehicle Width	1.715 ಮೀಟರ್
Vehicle Height	2.06 ಮೀಟರ್
Gross Vehicle Mass	3.15 ಟನ್
Rated Load Capacity	1.4 ಟನ್
Vehicle Weight	1.62 ಟನ್
Front Overhang/Rear Overhang	0.75 / 1.065 ಮೀಟರ್
Maximum Speed	90ಕಿಮೀ/ಗಂ
CLTC Driving Range	260ಕಿಮೀ
Electric Motor
Motor Brand	Aosweier
Motor Model	TZ200XS60K
Motor Type	Permanent Magnet Synchronous Motor
Rated Power	30ಒಂದು
Peak Power	60ಒಂದು
Rated Torque of the Motor	90N · m
Peak Torque	220N · m
Fuel Type	Pure Electric
ಬ್ಯಾಟರಿ
Battery Brand	Lishen
Battery Type	Lithium Iron Phosphate Lithium-ion
Battery Capacity	41.6kWh
Energy Density	135Wh/kg
Charging Method	Fast Charging + Slow Charging
Charging Time	0.8h for Fast Charging (80%), 13h for Slow Charging
Vehicle Body Parameters
Number of Seats	2 seats
Carriage Parameters
Maximum Depth of the Carriage	2.65 ಮೀಟರ್
Maximum Width of the Carriage	1.55 ಮೀಟರ್
Carriage Height	1.35 ಮೀಟರ್
Carriage Volume	5.4 cubic meters
Chassis Steering
Front Suspension Type	Independent Suspension
Rear Suspension Type	Leaf Spring
Door Parameters
Side Door Type	Manual Sliding Door
Tailgate Type	Double-opening Door
Wheel Braking
Front Wheel Specification	195R14C 8PR
Rear Wheel Specification	195R14C 8PR
Front Brake Type	Disc Brake
Rear Brake Type	Drum Brake
Safety Configurations
Seat Belt Unfastened Warning	●
Remote Control Key	●
Vehicle Central Lock	●
Handling Configurations
ABS Anti-lock Braking System	●
Internal Configurations
Air Conditioning Adjustment Mode	ಪ್ರಮಾಣಕ
Power Windows	●
Reverse Image	–
Reverse Radar	○
Multimedia Configurations
Bluetooth/Car Phone	–
External Audio Source Interface (AUX/USB/iPod, etc.)	●
Lighting Configurations
Front Fog Lights	●
