TRUMPAI

SAVYBĖS

• High-Power Motor: Equipped with a powerful permanent magnet synchronous motor with a maximum power of 390 kw. This enables the truck to deliver strong power output, ensuring excellent performance in various operating conditions such as starting, accelerating, climbing slopes, and heavy-load transportation. The maximum torque can reach 3200 Nm, allowing the truck to handle heavy loads with ease and providing reliable power support for construction and transportation tasks28.
• Efficient Transmission: Matched with a 6AT gearbox, the transmission system ensures smooth power transfer and accurate gear shifting. The large gear ratio of the first gear helps improve the vehicle’s starting and climbing performance, while the direct gear of the highest gear enhances transportation efficiency8.

• High-Capacity Battery Pack: The truck is fitted with a high-capacity lithium iron phosphate battery pack. The battery capacity can reach 444.36 kwh, providing a sufficient energy source for the vehicle’s operation. This allows the truck to have a relatively long 续航里程 (driving range), which can reach up to 200 kilometers or even 260 kilometers in some cases, fully meeting the requirements of urban construction and transportation289.
• Fast Charging Function: It is equipped with a 100 kw double-port DC charging port, and the charging time is relatively short. It only takes about 90 minutes to fully charge the battery, greatly improving the work efficiency of the vehicle and reducing the downtime for charging2.

• Sturdy Chassis: The chassis of the Byd 31 Tons Electric Dump Truck is designed to be highly durable and reliable. It can withstand the heavy weight of the vehicle and the impact of various road conditions. The enhanced suspension system and reinforced frame ensure the stability and safety of the vehicle during operation, especially when driving on uneven construction sites or bumpy roads8.

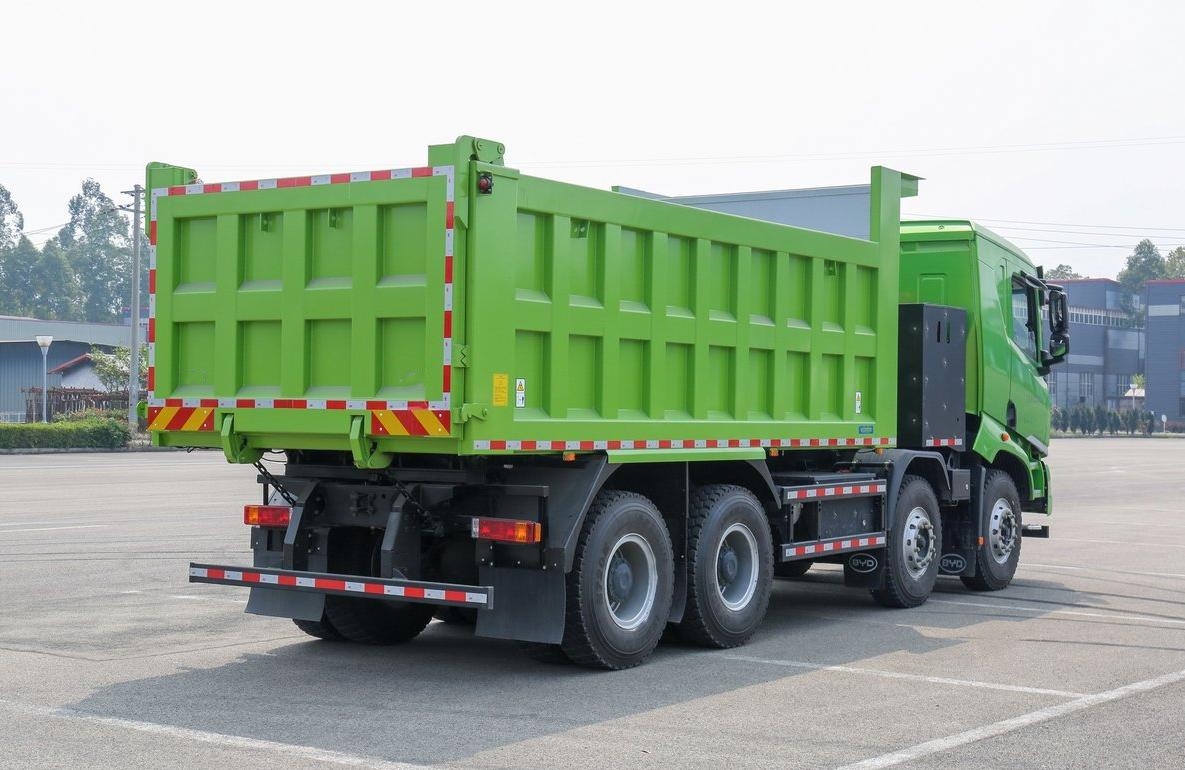

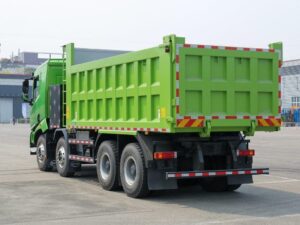

• U-Shaped Cargo Box: The U-shaped cargo box is made of high-strength wear-resistant materials, which not only has a lighter weight but also a lower center of gravity. This design makes the unloading more thorough and clean without dead corners, improving the efficiency of unloading operations. The cargo box also has a relatively large volume, which can meet the transportation needs of different types of goods2.

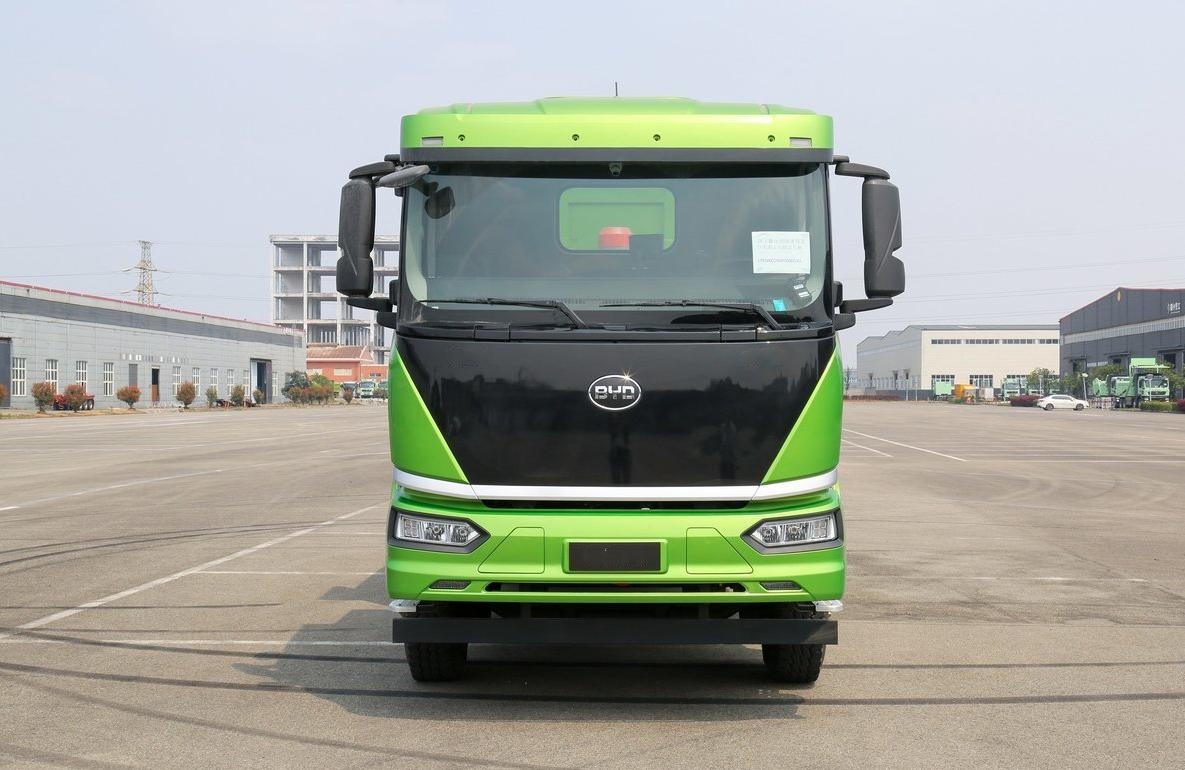

• Aesthetic and Functional Appearance: The truck’s appearance is designed by Wolfgang Egger. The green coating and the streamlined design of the roof combine Chinese traditional elements with European design concepts, showing a simple, capable, and stable style. The black-green contrasting color design of the front face not only has a high visual impact but also helps reduce wind resistance29.
• Safety Systems: The truck is equipped with a series of safety systems, such as fatigue driving and bad driving behavior monitoring functions, intelligent camera recognition system, and ABS anti-lock braking system. These systems can monitor the driving status of the driver in real-time, prompt the driver to drive safely, and effectively reduce the occurrence of traffic accidents9.

• Intelligent Cab: The truck has a new-generation cab independently developed by Byd engineers. The interior is designed with an integrated surround-type center console and a liquid crystal display instrument panel. Optionally, a 10.1-inch intelligent large screen with automatic flip function can be installed, which integrates functions such as navigation, entertainment, and vehicle information, providing drivers with a convenient and intelligent driving experience29.
• Smart Truck Manager: The truck is equipped with a smart truck manager system, which can provide services such as intelligent navigation, maintenance reminders, operation data analysis, and vehicle monitoring. This allows fleet managers to monitor the operation status of the vehicles in real-time and manage the fleet more efficiently29.

SPECIFIKACIJA

Pagrindinė informacija
Pavaros forma	8X4
Ratų bazė	1850+3200+1350mm
Transporto priemonės ilgis	9.8 metrų
Transporto priemonės plotis	2.55 metrų
Transporto priemonės aukštis	3.52 metrų
Bendra masė	31 tonų
Nominali apkrova	13.37 tonų
Transporto priemonės svoris	17.5 tonų
Maksimalus greitis	85km/val
CLTC cruising range	280km
Tonažo lygis	Heavy truck
Fuel type	Pure electric
Variklis
Motor brand	BYD
Motor model	TZ365XSD
Motor type	Permanent magnet synchronous motor
Rated power	250kW
Peak power	390kW
Krovinių dėžės parametrai
Krovinio dėžės forma	Dump
Krovinio dėžės ilgis	5.6 metrų
Krovinių dėžės plotis	2.3 metrų
Krovinių dėžės aukštis	1.5 metrų
Cargo box volume	20 cubic meters
Kabinos parametrai
Cab	Four-point coil spring fully floating type
Leidžiamas keleivių skaičius	2 žmonių
Sėdimų eilių skaičius	Half row
Važiuoklės parametrai
Leidžiama priekinės ašies apkrova	6500/6500KG
Leidžiama galinės ašies apkrova	18000 (two-axle group) kg
Padangos
Padangos specifikacija	12.00R20
Padangų skaičius	12
Baterija
Battery brand	BYD
Baterijos tipas	Ličio geležies fosfato baterija
Battery capacity	355KWH
Charging time	<2h
Valdymo konfigūracija
ABS antiblokavimo sistema	●
Vairo stiprintuvas	Electric power assistance
Vidinė konfigūracija
Air conditioning adjustment form	Manual
Atvirkštinis vaizdas	○
Multimedijos konfigūracija
GPS/Beidou tachografas	●
Bluetooth/automobilinis telefonas	●
Brake system
Front wheel brake	Drum type
Rear wheel brake	Drum type
