SUMMARY
FEATURES
SPECIFICATIONS
Basic Information | |
Announcement model | XMQ5035XXYBEVL01 |
Wheelbase | 3110mm |
Vehicle length | 5.455 meters |
Vehicle width | 1.705 meters |
Vehicle height | 2.195 meters |
Total mass | 3.495 tons |
Rated load | 1.51 tons |
Vehicle weight | 1.855 tons |
Front overhang/rear overhang | 1.19/1.155 meters |
Maximum speed | 100km/h |
Place of origin | Xiamen |
Factory-standard cruising range | 215km |
Warranty policy | 3 years or 60,000 kilometers |
Fuel type | Pure electric |
Motor | |
Motor brand | Xiamen King Long |
Motor model | TZ220XS030D1SG |
Motor type | Permanent magnet synchronous motor |
Rated power | 50kW |
Peak power | 80kW |
Maximum torque | 270N·m |
Fuel category | Pure electric |
Cab parameters | |
Number of seat rows | 1 |
Battery | |
Battery brand | CATL |
Battery type | Lithium iron phosphate battery |
Battery capacity | 41.86kWh |

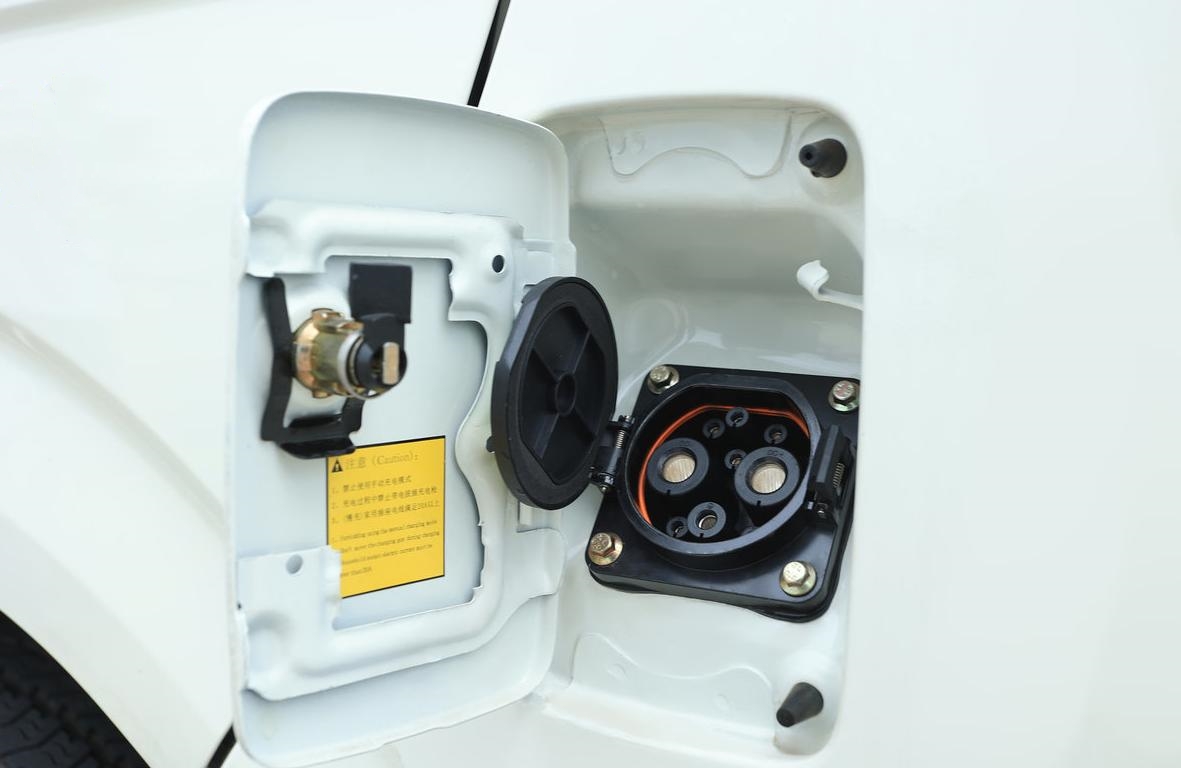

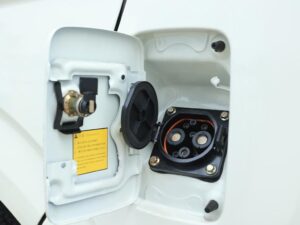

Charging method | Fast charging |
Charging time | 20%-100% 1.5 hours. |
Body parameters | |
Body structure | Monocoque |
Number of seats | 2 |

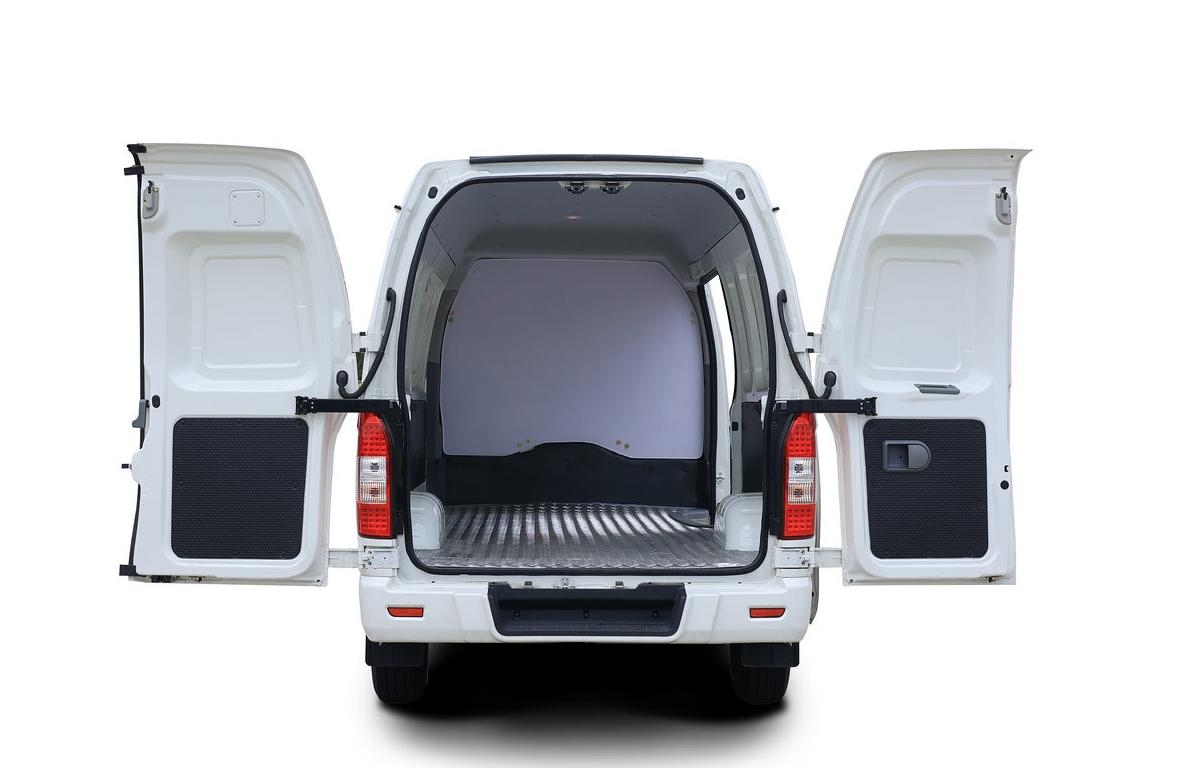

Compartment parameters | |
Maximum depth of compartment | 3.4 meters |
Maximum width of compartment | 1.51 meters |
Height of compartment | 1.51 meters |
Chassis steering | |
Front suspension type | Independent suspension |
Rear suspension type | Leaf spring |
Power assist type | Electronic power assist |
Door parameters | |
Number of doors | 5 |

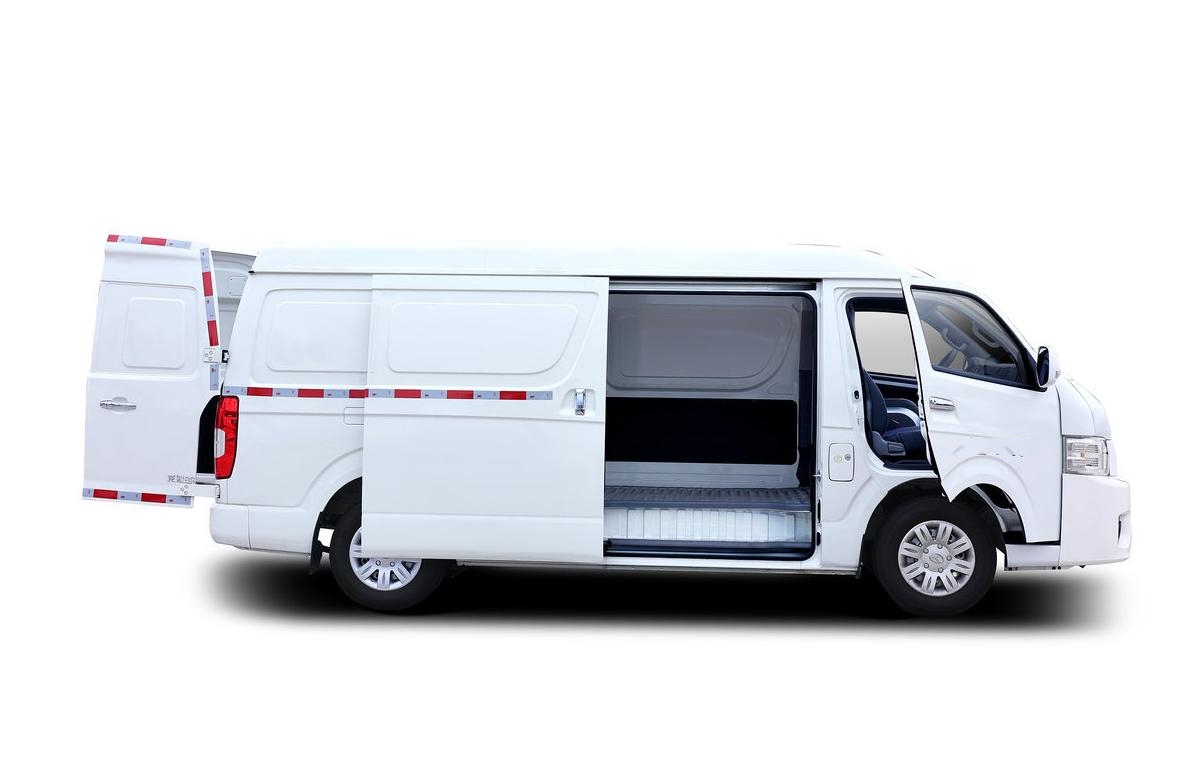

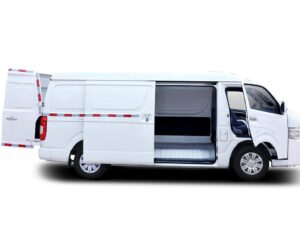

Side door form | Sliding |
Wheel braking | |
Front wheel specification | 195R15LT |
Rear wheel specification | 195R15LT |
Front brake type | Disc brake |
Rear brake type | Drum brake |
Safety configuration | |
Seat belt unfastened reminder | ● |
Remote key | ● |
Central locking inside the vehicle | ● |
Control configuration | |
ABS anti-lock | ● |

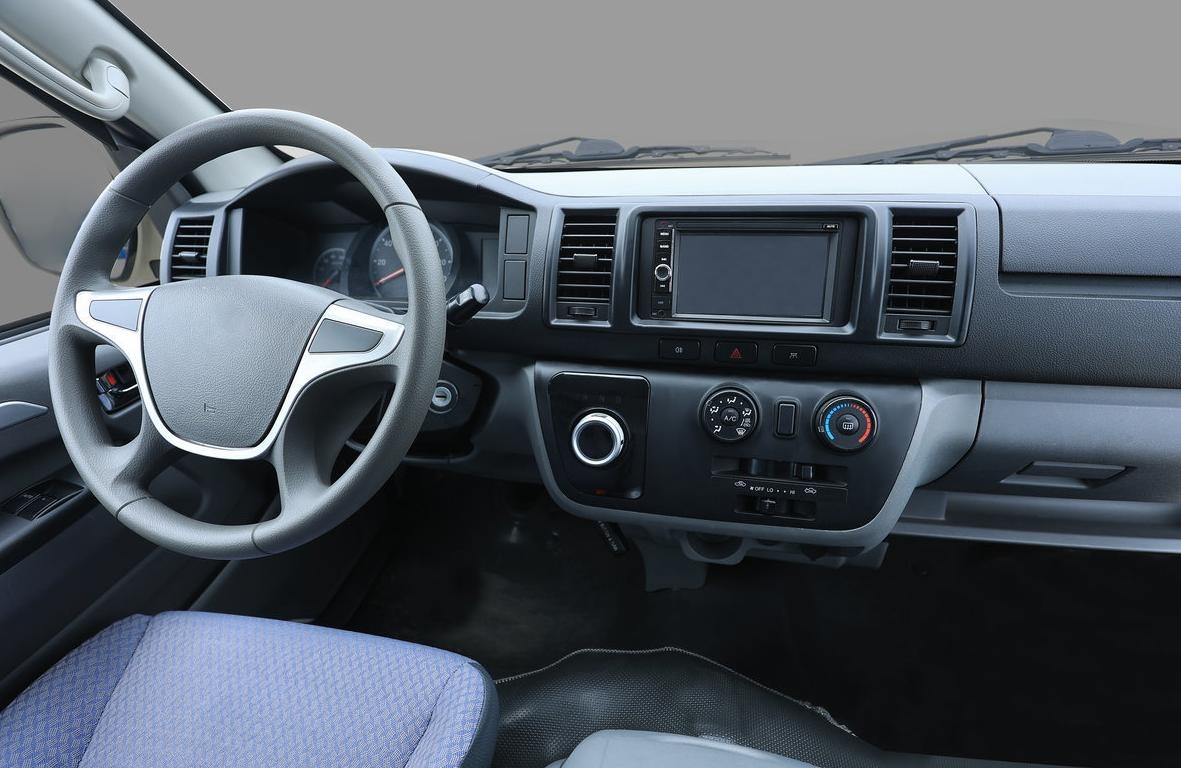

Internal configuration | |
Steering wheel material | Plastic |
Steering wheel adjustment | ● |
Seat material | Fabric |

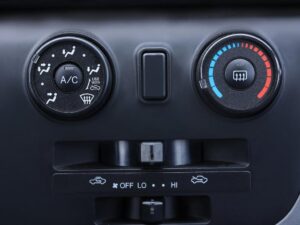

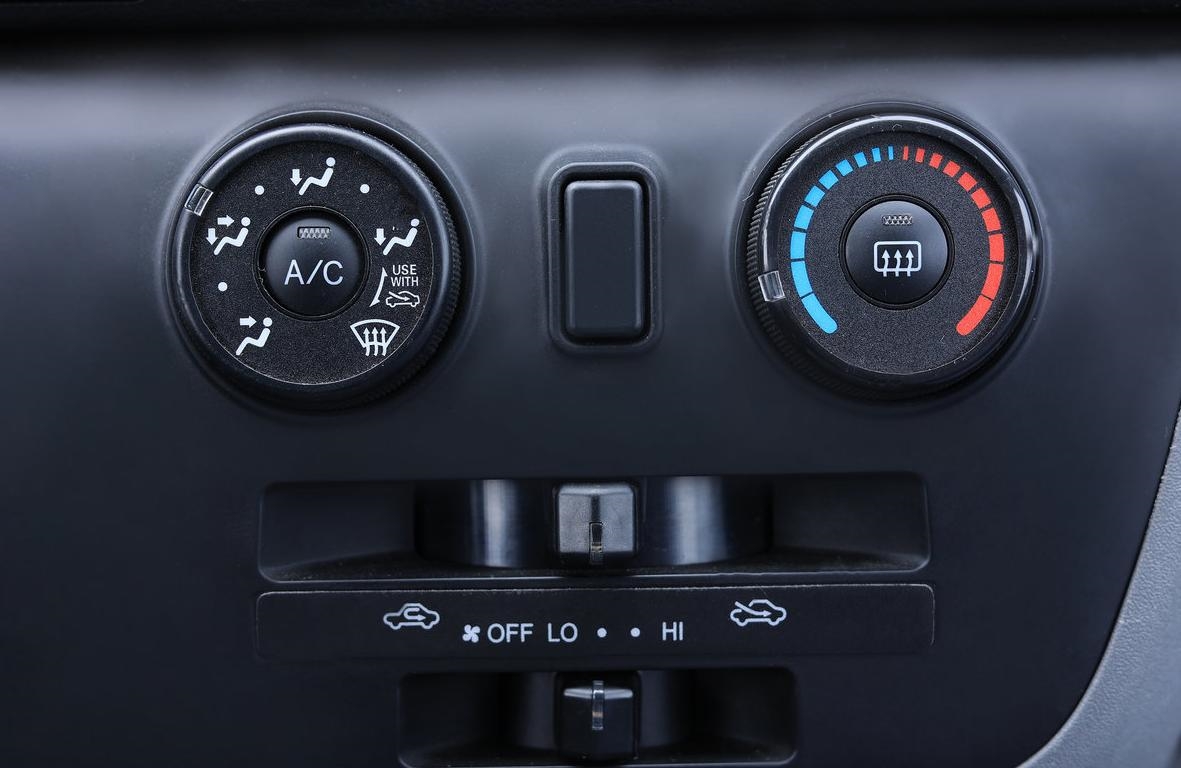

Air conditioning adjustment form | Manual |
Power windows | ● |
Electrically adjustable rearview mirror | ○ |
Multimedia configuration | |
External audio source interface (AUX/USB/iPod, etc.) | ● |
