විශේෂාංග

• Electric power source provides a clean and sustainable alternative to traditional fuel-powered trucks. It reduces emissions and noise pollution, making it ideal for urban environments.
• With a 9-ton capacity, it can handle a significant amount of waste. The powerful electric motor offers sufficient torque to ensure smooth operation even when fully loaded.

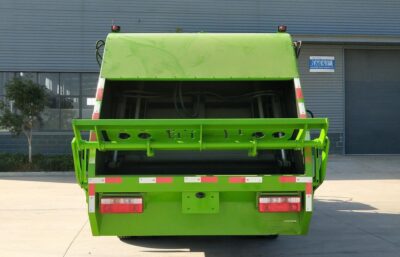

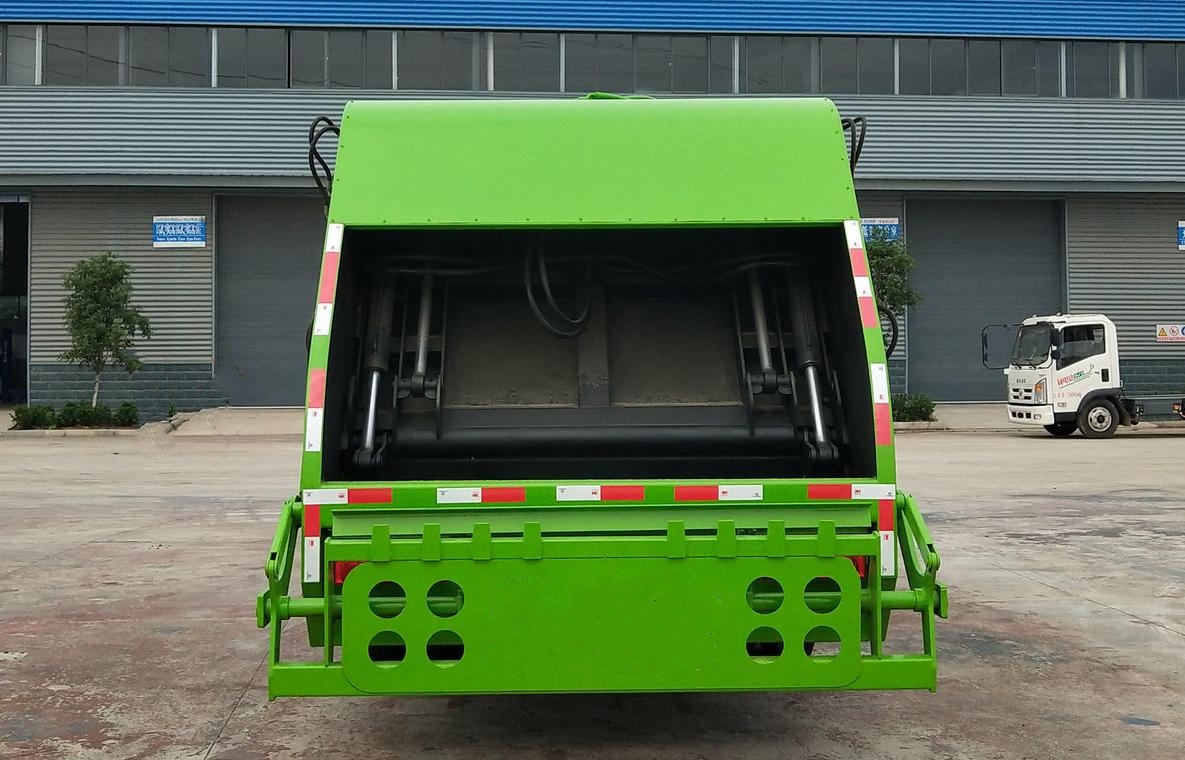

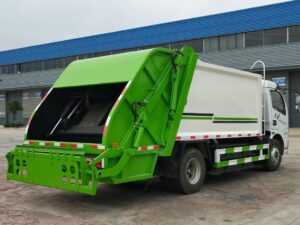

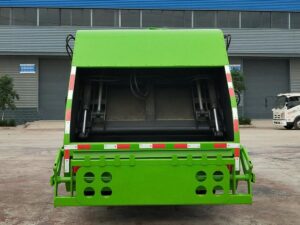

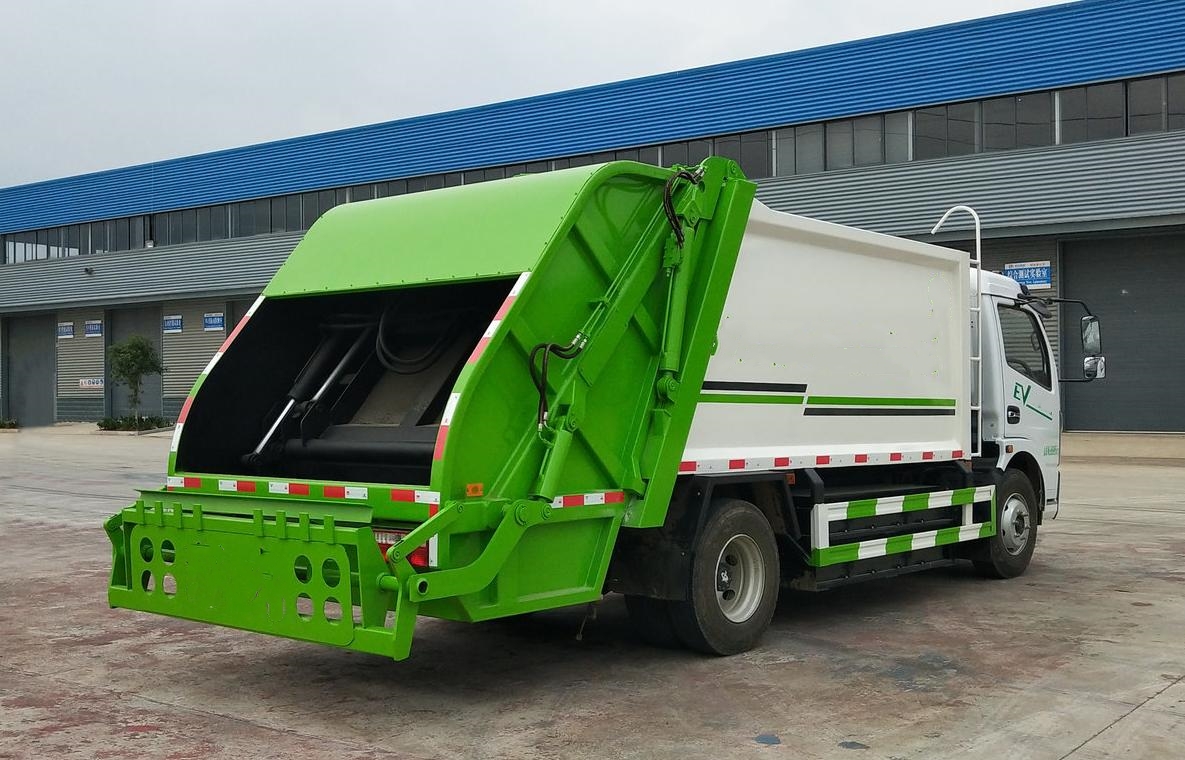

• Equipped with a highly efficient rear compactor. This mechanism compacts waste effectively, maximizing the load capacity and reducing the number of trips required for waste disposal.
• The compaction process is designed to be quick and thorough, ensuring that waste is tightly packed for efficient transportation.

• Built with high-quality materials and components, the truck is designed to withstand the rigors of daily waste collection and transportation.
• It undergoes rigorous testing to ensure durability and reliability, providing long service life and minimal downtime.

• Comes with a range of safety features to protect operators and the public. These may include safety locks, emergency stop buttons, and visibility enhancements.
• The electric power system is designed with safety in mind, with features such as overcharge protection and short-circuit prevention.

• The truck is designed for ease of operation. The controls are intuitive and easy to reach, reducing operator fatigue and improving productivity.
• The cab is comfortable and ergonomically designed, providing a pleasant working environment for the operator.

• Can be used in a variety of waste management applications, including residential, commercial, and industrial waste collection.
• Its compact size and maneuverability make it suitable for navigating through narrow streets and tight spaces.

පිරිවිතර

මූලික තොරතුරු
Drive form	4X2
රෝද බඳුන්	3800මි.මී.
Body length	7.35 මීටර
Body width	2.25 මීටර
Body height	2.75 මීටර
Vehicle weight	7.6 ටොන්
Rated load	1.2 ටොන්
Total mass	8.995 ටොන්
Maximum speed	90km / h
Factory standard range	300කි.මී.
මෝටරය
Motor brand	CRRC Times
Motor model	TZ290XSZ
Motor type	AC permanent magnet synchronous motor
Rated power	80kw
Peak power	145kw
Motor rated torque	611N·m
Peak torque	1800N·m
Cargo box parameters
Volume of compartment	8 cubic meters
Mounted equipment parameters

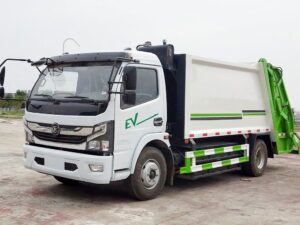

Vehicle type	Electric Rear Compactor Truck
Special function description	Collection and transportation of urban environmental sanitation garbage
Cab parameters
Cab	Flat-head single row, tiltable
Chassis parameters
Chassis series	Chengli
Chassis model	CL1090JBEV
Number of leaf springs	8/10+7
Front axle load	3000kgKG
Rear axle load	5995kgKG
Tires
Tire specification	8.25R16LT 14PR, 9.5R17.5 14PR
Number of tires	6 pieces
බැටරි
Battery brand	Jiangxi Xingying
Battery model	512V/310AH
Battery type	Lithium iron phosphate battery
Battery capacity	158.72kWh
Energy density	122.7Wh/kg
Battery rated voltage	512V
Battery total voltage	584V
Charging method	Fast charging
Charging time	2h
Brand of electronic control system	Chengdu CRRC
