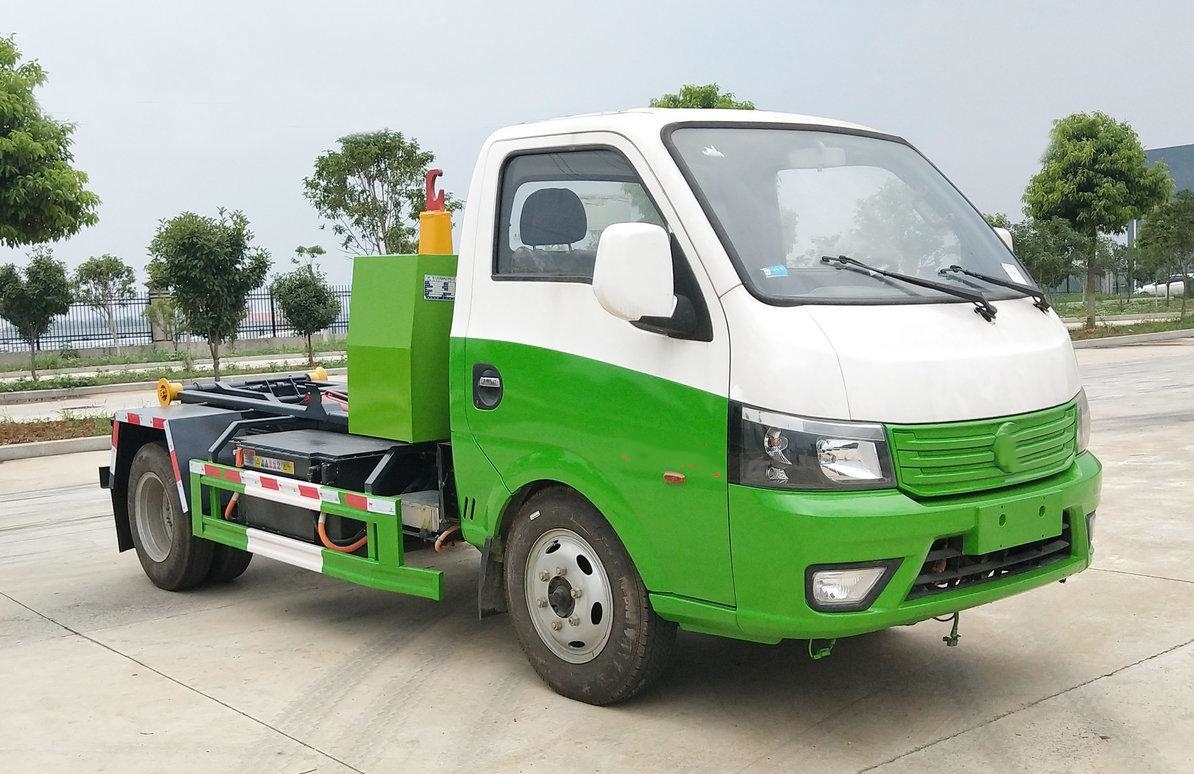

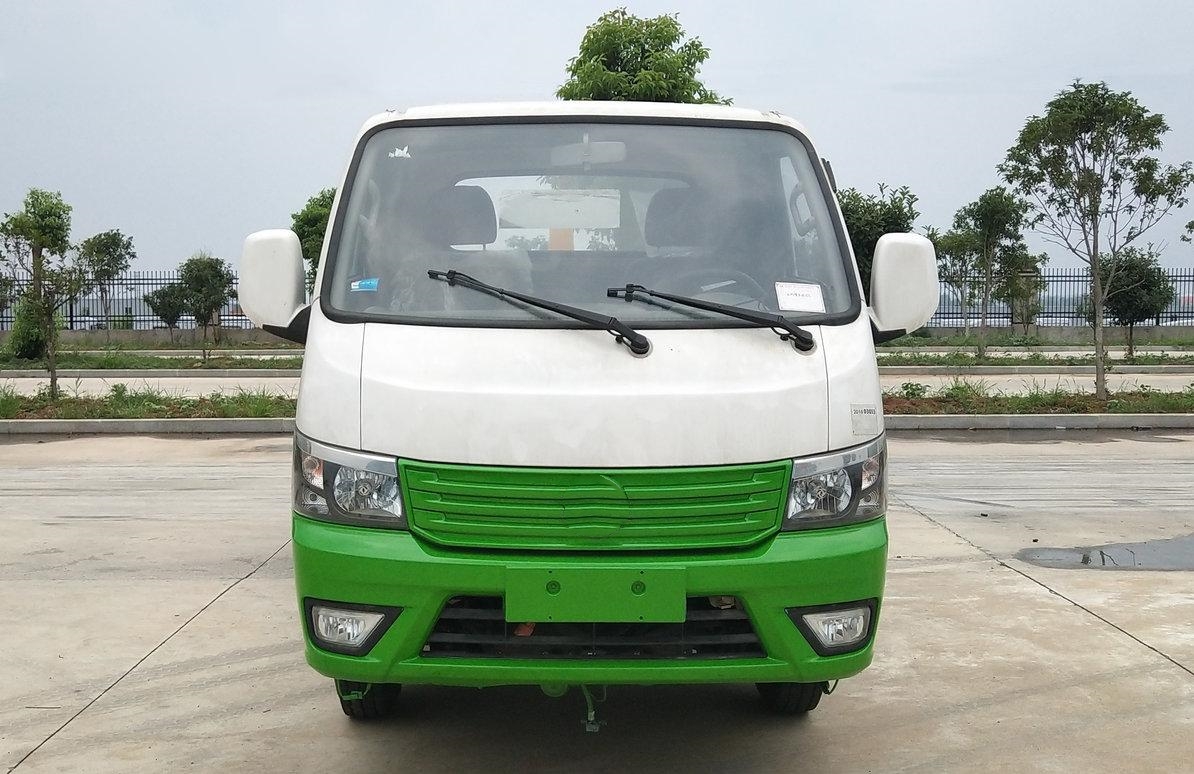

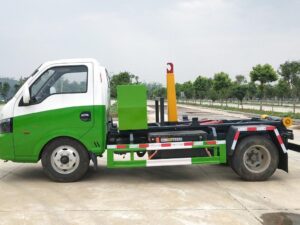

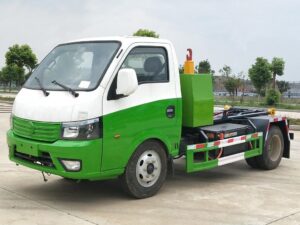

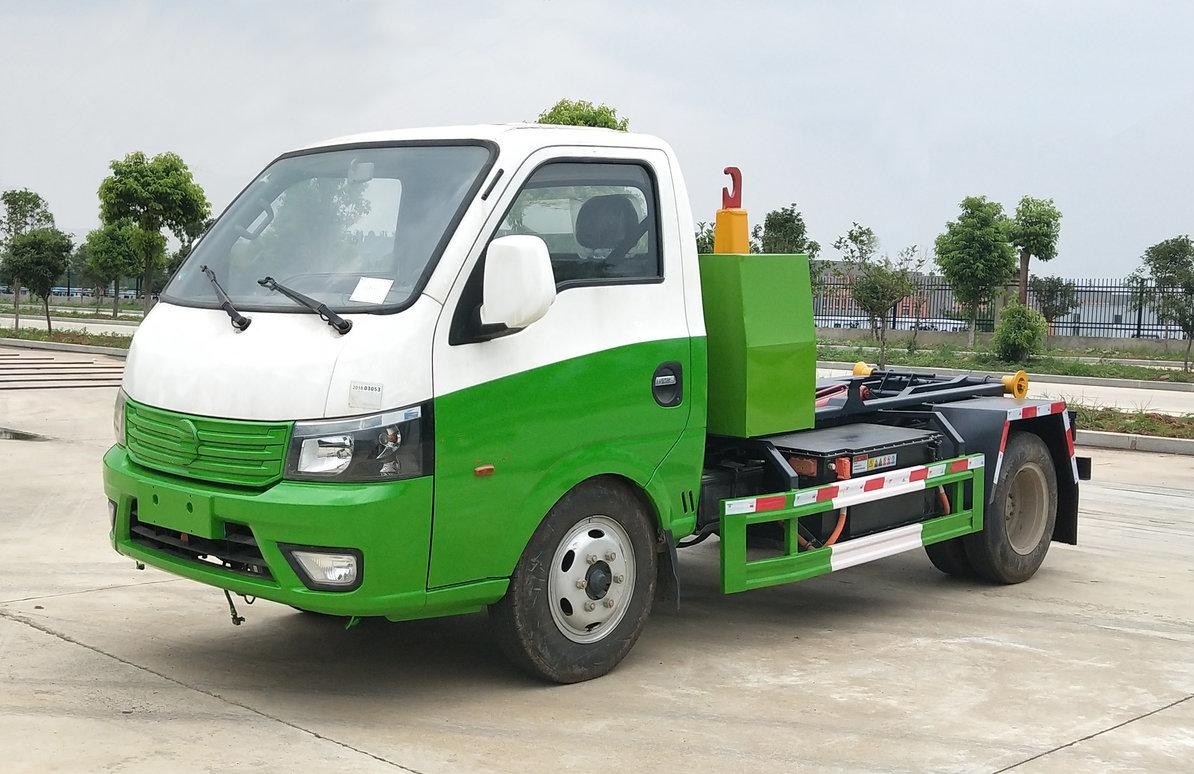

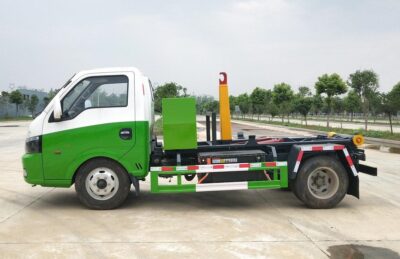

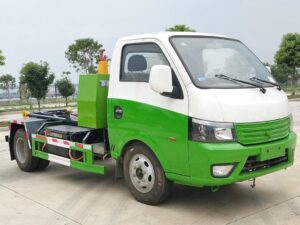

4.3T 5.3-Meter Single-Row Pure Electric Detachable Garbage Truck With Carriage

4.3T 5.3-Meter Single-Row Pure Electric Detachable Garbage Truck With Carriage

Announcement Model	CL5040ZXXBEV
Drive Form	4X2
Wheelbase	2800mm
Body Length	5.3 meters
Body Width	1.86 meters
Body Height	2 meters
Gross Mass	4.3 tons
Maximum Speed	90 km/h
Factory Labeled Battery Life	280 km

Description
Reviews (0)

BRIEF

This 4.3T 5.3-meter single-row pure electric detachable garbage truck with carriage is a cutting-edge solution for waste collection. With its 4.3-ton payload capacity and 5.3-meter carriage, it provides a practical and efficient way to handle garbage. Powered by electricity, it offers a sustainable and quiet operation, making it ideal for urban and suburban areas.

FEATURES

The 4.3T 5.3-meter single-row pure electric detachable garbage truck with carriage showcases several notable characteristics.

The 4.3-ton payload capacity ensures it can handle a substantial amount of garbage, making it suitable for various waste collection scenarios. The 5.3-meter carriage provides a generous space for efficient loading and storage of waste materials.

The single-row design optimizes the driver’s cabin, offering a comfortable and focused driving experience. It also enhances maneuverability, allowing the truck to navigate through narrow streets and tight spaces with ease.

The pure electric power system is a significant feature. It operates with zero emissions, contributing to a cleaner environment and reducing the carbon footprint associated with waste collection. The electric motor provides smooth and quiet performance, minimizing noise pollution in residential areas.

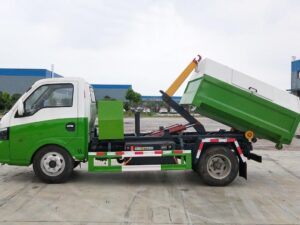

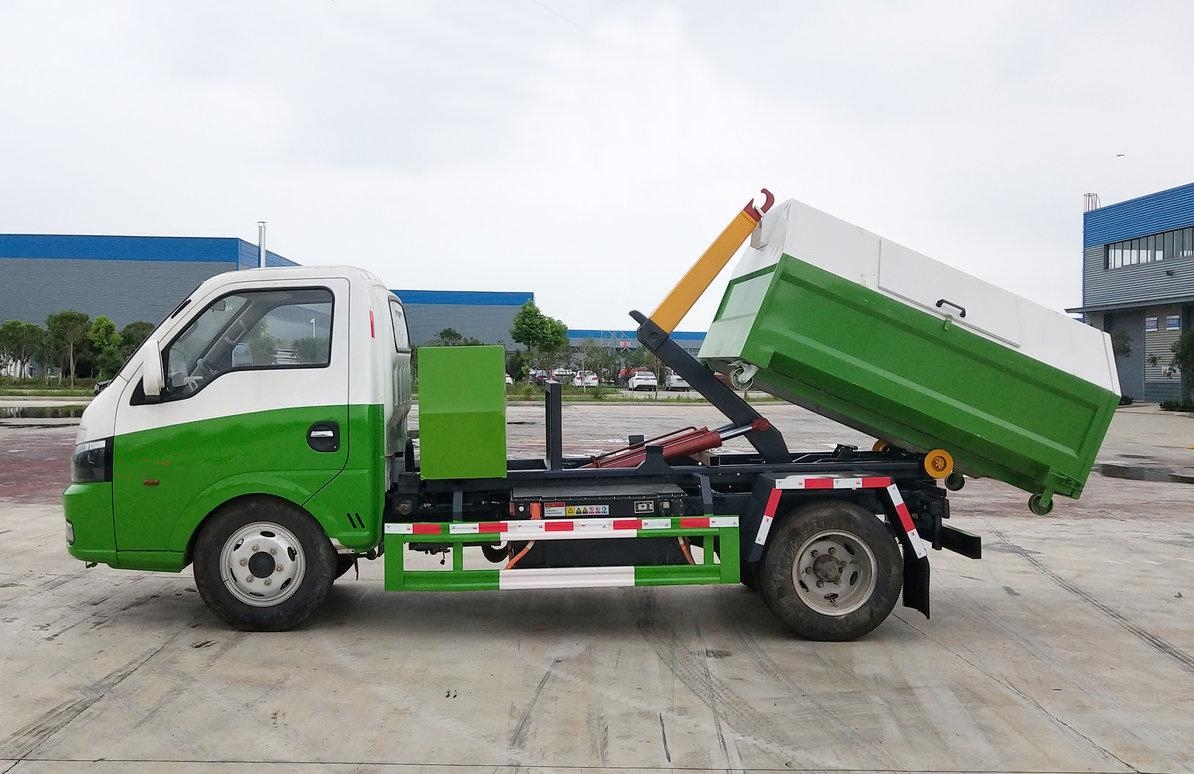

The detachable carriage functionality is highly practical. It enables quick and effortless unloading of garbage, reducing the time and effort required for waste disposal. This feature also allows for flexibility in operations, as multiple carriages can be used interchangeably.

The truck is likely equipped with advanced battery technology that offers a reliable range, enabling it to complete multiple collection routes without the need for frequent charging.

It may incorporate intelligent control systems that monitor battery status, vehicle performance, and garbage fill levels, ensuring efficient and safe operation.

In terms of safety, it could include features such as reinforced chassis, braking assist systems, and visibility enhancements to protect both the driver and the public.

For instance, in a crowded urban neighborhood, this garbage truck can efficiently collect and transport waste without causing excessive noise or emissions. Its detachable carriage simplifies the waste disposal process, improving overall operational efficiency.

Overall, the 4.3T 5.3-meter single-row pure electric detachable garbage truck with carriage combines functionality, eco-friendliness, and safety to offer a modern and effective solution for waste management.

SPECIFICATION

Basic Information
Announcement Model	CL5040ZXXBEV
Drive Form	4X2
Wheelbase	2800mm
Body Length	5.3 meters
Body Width	1.86 meters
Body Height	2 meters
Vehicle Weight	2.5 tons
Rated Load	1.67 tons
Gross Mass	4.3 tons
Maximum Speed	90 km/h
Place of Origin	Suizhou, Hubei
Factory Labeled Battery Life	280 km
Fuel Type	Pure Electric
Motor
Motor Brand	CRRC Times
Motor Model	TZ220XS504
Motor Type	Permanent Magnet Synchronous Motor
Rated Power	60kW
Peak Power	140kW
Motor Rated Torque	110 N·m
Peak Torque	290 N·m
Fuel Category	Pure Electric
Superstructure Parameters
Vehicle Type	Pure Electric Detachable Garbage Truck with Carriage
Superstructure Brand	Chengli Brand
Special Function Description	Collection and transportation of urban sanitation garbage
Cab Parameters
Cab	Single row, non-tippable
Gearbox Parameters
Gearbox Model	Automatic transmission
Chassis Parameters
Chassis Series	Dongfeng Huashen
Chassis Model	EQ1040TTZEVJ1
Spring Leaf Number	3/5, 6/7 + 4
Front Axle Load	1130 kgKG
Rear Axle Load	2365 kgKG
Tire
Tire Specification	185R14LT 6PR
Number of Tires	6
Battery
Battery Brand	LISHEN
Battery Model	LS1P50S-202Ah
Battery Type	Lithium Iron Phosphate Battery
Battery Capacity	64.64 kWh
Energy Density	136.6 Wh/kg
Battery Rated Voltage	320V
Charging Method	DC charging, AC charging
Charging Time	DC charging 2h, AC charging 6 – 8h
Brand of Electronic Control System	Jingjin Power
