SUMMARY

• It is a pure electric micro-truck that operates with zero emissions, which is environmentally friendly. It has a capacity to carry up to 3.5 ton, making it suitable for medium-duty transport tasks within the city.

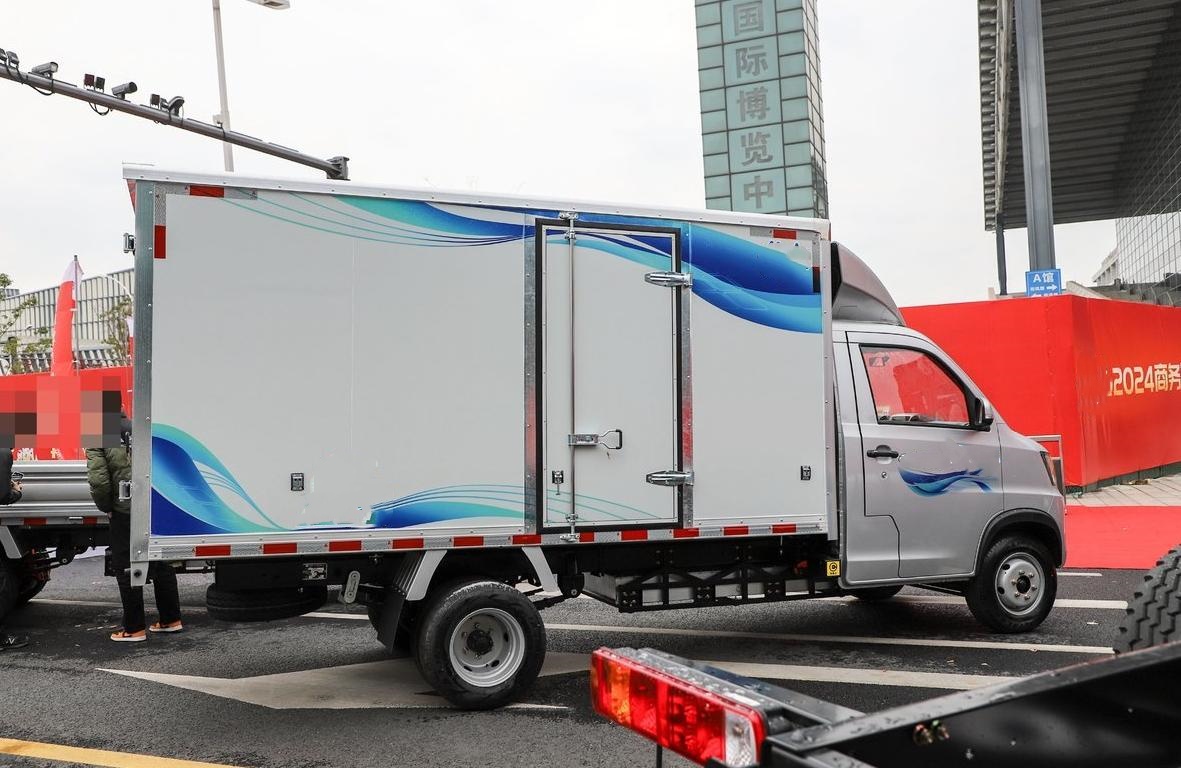

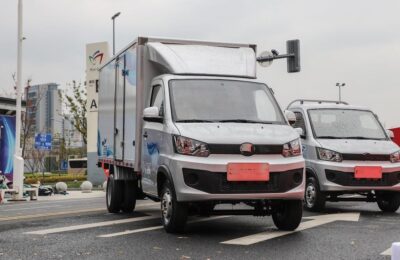

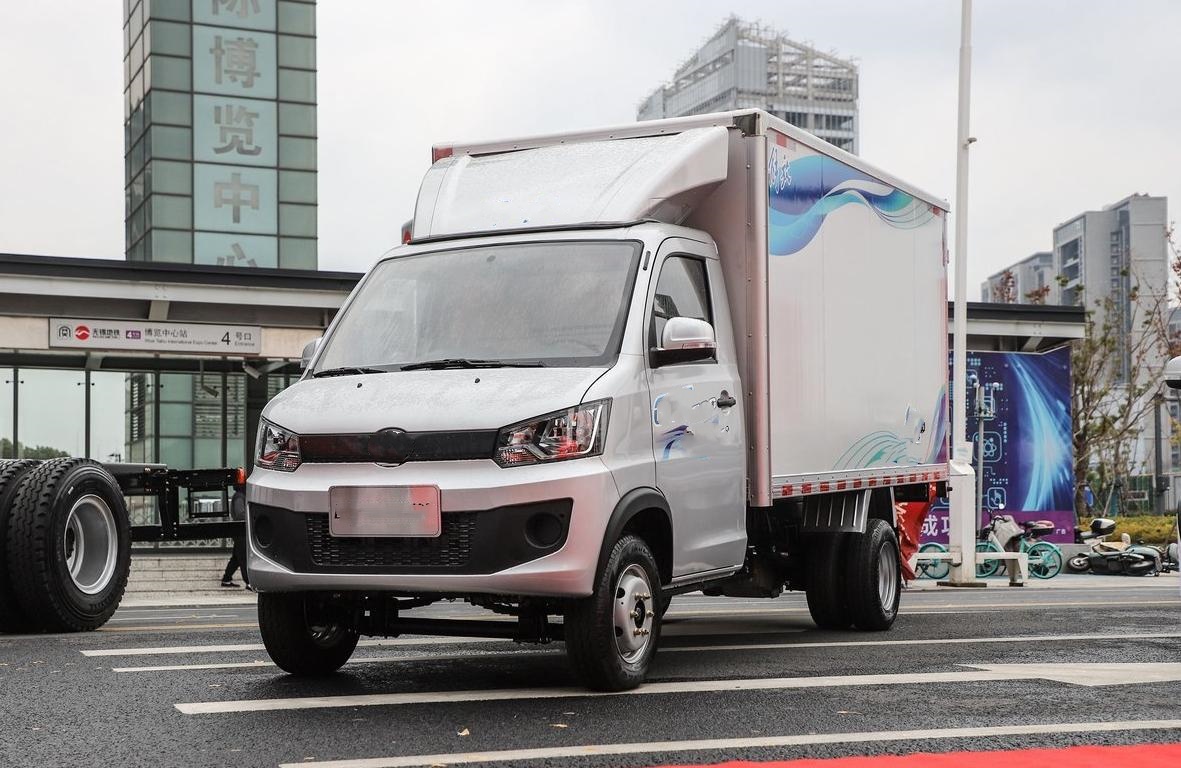

• The 3.665-meter single-row van-type design provides a balance between cargo space and vehicle maneuverability. It can transport a variety of goods while being able to navigate through narrow urban streets with ease. The van-type body offers better protection for the cargo from the elements and external factors.

• The vehicle likely has a certain range on a single charge, enabling it to be used for local deliveries and short- to medium-distance transportation within the city. It is equipped with a charging system that allows for convenient recharging, whether at home, at a workplace, or at public charging stations.
• The charging options may include standard AC charging and potentially faster DC charging capabilities, depending on the model, to minimize downtime and keep the truck operational for longer periods.

• In urban areas, it is ideal for last-mile deliveries of parcels, groceries, and small appliances. It can also be used by small businesses for local distribution of their products.
• Its compact size and van-type design make it suitable for accessing areas where larger vehicles may have difficulty reaching, enhancing the efficiency of urban logistics. It can contribute to more efficient urban transportation while reducing the environmental impact.

• The interior of the cab is likely designed with driver comfort in mind. It may have ergonomic seating to reduce fatigue during long drives. The controls are probably intuitive and easy to use, allowing the driver to focus on the road and operate the vehicle efficiently. The quiet operation of the electric motor provides a more pleasant driving environment compared to traditional fuel-powered trucks.
• The cab may also offer some basic amenities such as a storage compartment for personal items and a simple infotainment system for added convenience during the workday.

ZNAČILNOSTI

Electric Propulsion System

• Zero Emissions and Environmental Sustainability: As a pure electric vehicle, the E90 offers a significant environmental advantage by producing zero tailpipe emissions during operation. This helps to reduce air pollution in urban areas and is in line with the global trend towards sustainable transportation. It is a great choice for businesses and individuals looking to reduce their carbon footprint and contribute to a cleaner environment.
• Power and Performance: The electric powertrain is designed to provide sufficient power to handle a 3.5-ton load capacity. It offers good acceleration and can easily navigate through different road conditions, including urban streets, highways, and some light off-road situations if needed. The motor is likely to be efficient and reliable, ensuring smooth operation and consistent performance. It may also incorporate advanced technologies such as regenerative braking, which helps to recover energy during deceleration and braking, thereby increasing the overall energy efficiency of the vehicle and extending its range.
• Quiet Operation: One of the notable advantages of an electric motor is its quiet operation. The E90 runs quietly, reducing noise pollution in urban environments. This makes it more suitable for operations in residential areas, during early mornings or late evenings without causing excessive disturbance to the surrounding community. It provides a more pleasant driving experience for the driver and a quieter environment for pedestrians and nearby residents.

Cargo Space and Van-Type Design

• 3.665-Meter Single-Row Configuration: The 3.665-meter cargo area with a single-row design provides a spacious and practical solution for transporting goods. The single-row layout allows for easier access to the cargo space, facilitating loading and unloading operations. It can accommodate a variety of cargo types, including small to medium-sized packages, light furniture, and other items commonly used in urban delivery and light commercial applications. The van-type design provides better protection for the cargo from the elements, ensuring that the goods remain in good condition during transit.
• Durable and Functional Body: The truck’s body is likely constructed with high-quality materials to ensure durability and strength. It can withstand the rigors of daily use and heavy loads, providing a long service life. The cargo area may be equipped with features such as tie-down points, to secure the cargo during transportation and prevent it from shifting or moving. The van-like structure also offers additional security for the cargo, reducing the risk of theft or damage. The body may be designed with aerodynamic considerations to improve energy efficiency and reduce wind resistance, further enhancing the vehicle’s performance.
• Ergonomic Design for Loading and Unloading: The vehicle is designed with ergonomics in mind to make the loading and unloading process as efficient and convenient as possible. It may have a low loading height, reducing the effort required to load and unload heavy items. The presence of ramps or other loading aids can further enhance the ease of operation, saving time and labor. The interior layout of the cargo area may also be optimized to maximize the use of space and allow for efficient stacking and organization of the cargo, improving the overall transportation efficiency.

Battery and Range

• Battery Capacity and Range: The E90 is equipped with a high-capacity battery that provides a decent range on a single charge. The range is crucial for its practicality in various transportation scenarios, allowing it to cover a significant distance within a city or for short- to medium-distance trips between different locations. The actual range can vary depending on several factors, such as driving style, road conditions, payload, and ambient temperature. However, it is designed to meet the requirements of typical urban and local delivery, as well as some light industrial transportation tasks. The battery management system may be advanced, ensuring the safety and longevity of the battery, and providing accurate information about the battery’s state of charge and remaining range to the driver.
• Charging Options and Convenience: The vehicle comes with a variety of charging options to suit different user needs and scenarios. It can be charged using a standard household electrical outlet, which is convenient for overnight charging at the depot or the driver’s residence. Additionally, it is likely compatible with public charging stations, providing flexibility for quick top-ups during the day. Some models may also support fast-charging capabilities, allowing the battery to be charged to a significant percentage in a relatively short time. This reduces downtime and maximizes the vehicle’s operational availability, ensuring that it can be back on the road quickly and efficiently to meet the demands of transportation schedules. The charging interface may be designed to be user-friendly and easy to operate, with clear indicators and safety features.

Safety and Control Features

• Advanced Safety Systems: The truck is equipped with a range of safety features to ensure the safety of the driver, cargo, and other road users. It may include anti-lock braking systems (ABS), which prevent the wheels from locking up during braking, enhancing vehicle stability and control. Electronic stability control (ESC) systems may also be present to help maintain the vehicle’s stability in various driving conditions, especially during cornering or sudden maneuvers. Additionally, it may have features such as a collision avoidance system or lane departure warning system to provide additional safety alerts and assistance to the driver, reducing the risk of accidents. The vehicle may also have a robust braking system with good stopping power and responsive brakes, ensuring safe braking in all situations.
• Precise Steering and Control: The steering system is designed for precision and responsiveness, allowing the driver to easily maneuver the vehicle in tight spaces and traffic. The controls are intuitive and ergonomically designed, ensuring that the driver can operate the vehicle with ease and confidence. The vehicle may have a well-tuned suspension system that provides a smooth ride and good handling, further enhancing the driving experience and safety. The vehicle may also have features such as a hill-start assist system, which prevents the vehicle from rolling backward when starting on an incline, adding an extra layer of safety and convenience, especially in hilly or inclined areas.
• Visibility and Lighting: Good visibility is essential for safe driving, and the E90 is likely equipped with large windows and well-positioned mirrors to provide a clear view of the surrounding environment. It may also have high-quality lighting systems, including headlights, taillights, and turn signals, to ensure visibility during all lighting conditions, especially at night or in poor weather. The headlights may have features such as automatic on/off or adjustable brightness to adapt to different driving situations and improve visibility without blinding other road users. The vehicle may also have additional lighting features such as side marker lights and rear fog lights for enhanced visibility and safety.

Driver Comfort and Convenience

• Comfortable Cab Design: The driver’s cab is designed with ergonomics in mind to provide maximum comfort during long working hours. The seating is adjustable to fit different body sizes and preferences, and it is likely designed to provide good lumbar support to reduce fatigue. The cab may also be insulated from noise and vibration, creating a quieter and more pleasant working environment for the driver. The interior may be equipped with amenities such as a climate control system to maintain a comfortable temperature inside the cab, regardless of the external weather conditions. The cab may also have a spacious and well-designed layout, providing enough room for the driver to move and operate comfortably.
• Intuitive Instrumentation and Controls: The dashboard and controls are designed to be user-friendly and intuitive. The driver can easily access and operate essential functions such as the speedometer, battery level indicator, and charging status display. The infotainment system, if available, may include features such as Bluetooth connectivity for hands-free calling and audio streaming, adding to the convenience and comfort of the driver. The vehicle may also have features such as a reversing camera or parking sensors to assist the driver during parking and maneuvering in tight spaces, reducing the risk of collisions and improving overall driving experience. The controls may be designed with clear labels and easy-to-use interfaces, minimizing driver distraction and ensuring safe operation.
• Storage and Amenities: The cab may offer storage compartments for the driver to keep personal items and work-related documents. There may also be additional amenities such as a cup holder, a storage tray, or a USB charging port to further enhance the driver’s convenience. The vehicle’s design may also consider the driver’s ergonomic needs in terms of reach and access to controls, ensuring that everything is within easy reach and can be operated without excessive effort, improving the overall driving experience and reducing driver fatigue. The cab may also have good visibility of the cargo area, allowing the driver to monitor the load during transportation.

SPECIFICATIONS

Osnovne informacije
Announcement model	CA5035XXYBEV21
Vrsta	Van cargo truck
Drive form	4X2
Medosna razdalja	3500mm
Vehicle length	5.795 metrov
Vehicle width	1.8 metrov
Vehicle height	2.67 metrov
Total mass	3.495 ton
Rated load	1.345 ton
Vehicle weight	2.02 ton
Maximum speed	90km/h
Factory-standard cruising range	260km
Tonnage level	Micro truck
Place of origin	Liuzhou, Guangxi, Harbin, Qingdao, Changchun
Fuel type	Pure electric
Motor
Motor brand	Zhongke Shenjiang
Motor model	TZ210XS045A
Motor type	Permanent magnet synchronous motor
Rated power	45kW
Peak power	90kW
Fuel category	Pure electric
Cargo box parameters
Cargo box form	Van type
Cargo box length	3.665 metrov
Cargo box width	1.67 metrov
Cargo box height	1.7 metrov
Cargo compartment volume	11 cubic meters
Cabin parameters
Cabin	Pointed-nose cabin
Number of passengers allowed	2 people
Number of seat rows	Single row
Chassis parameters
Allowable load on front axle	1460kg
Rear axle description	2.5T electric drive rear axle
Allowable load on rear axle	2035kg
Tires
Tire specification	185R14LT 6PR
Number of tires	6
Baterija
Battery brand	Eve
Battery type	Lithium iron phosphate battery
Battery capacity	55.06kWh
Control configuration
ABS anti-lock braking	●
Internal configuration
Air conditioning adjustment form	Priročnik
Power windows	●
