T31 31T 8X4 5.6-Meter Pure Electric Dump Truck

T31 31T 8X4 5,6-metrski čisti električni prekucnik

Model objave	BYD3310C2EV1
Obrazec pogona	8X4
Medosna razdalja	1850 + 3200 + 1350mm
Dolžina telesa	9.8 metrov
Širina telesa	2.55 metrov
Telesna višina	3.52 metrov
Bruto masa	31 ton
Nazivna obremenitev	13.82 ton
Teža vozila	17.05 ton
Največja hitrost	85 km/h
Factory Standard Range	270 km

Opis
Ocene (0)

NA KRATKO

The T31 31T 8X4 5.6-meter pure električni prekucnik is a cutting-edge vehicle designed to meet the demanding needs of heavy material transportation. It combines electric power with a robust design for efficient and sustainable operations.

ZNAČILNOSTI

The T31 31T 8X4 5.6-meter pure električni prekucnik offers a multitude of remarkable features.

The 31T payload capacity is extremely impressive, allowing it to handle heavy loads with ease. The 8X4 drivetrain configuration ensures superior traction and stability, making it suitable for challenging road and job site conditions.

The 5.6-meter dump body is spacious and well-constructed for efficient loading and unloading of materials.

The pure electric drivetrain is a key feature, providing zero emissions and quieter operation compared to traditional diesel-powered trucks. This not only benefits the environment but also reduces noise pollution in the work area.

The battery system is likely to have a high energy density and a long range, enabling the truck to complete multiple trips without the need for frequent charging. It may also support fast charging to minimize downtime.

The truck might be equipped with advanced power management systems that optimize energy usage based on the driving conditions and load.

It could have a sophisticated suspension system to provide a smooth ride, even when carrying a full load, and enhance the overall comfort of the driver.

In terms of safety, it may incorporate features such as anti-lock brakes, nadzor stabilnosti, and a reinforced frame to protect the driver and the vehicle in case of an accident.

Na primer, in large-scale construction projects or mining operations, this dump truck can transport materials reliably and sustainably, contributing to a more efficient and environmentally friendly workflow.

Na splošno, the T31 31T 8X4 5.6-meter pure električni prekucnik combines strength, performance, and eco-friendliness to offer a modern and reliable solution for heavy-duty material transportation.

SPECIFIKACIJA

Osnovne informacije
Model objave	BYD3310C2EV1
Obrazec pogona	8X4
Medosna razdalja	1850 + 3200 + 1350mm
Dolžina telesa	9.8 metrov
Širina telesa	2.55 metrov
Telesna višina	3.52 metrov
Bruto masa	31 ton
Nazivna obremenitev	13.82 ton
Teža vozila	17.05 ton
Največja hitrost	85 km/h
Factory Standard Range	270 km
Tonnage Level	Heavy Truck
Kraj izvora	Pingshan, Shenzhen
Vrsta goriva	Čisti električni
Motor
Znamka motorja	BYD
Model motorja	TZ365XSD
Vrsta motorja	Sinhroni motor s trajnim magnetom
Nazivna moč	380kW
Največja moč	390kW
Kategorija goriva	Čisti električni
Parametri tovornega zaboja
Dolžina tovornega zaboja	5.6 metrov
Širina tovornega prostora	2.3 metrov
Cargo Box Height	1.5 metrov
Parametri kabine
Dovoljeno število potnikov	2
Število vrst sedežev	Semi-Cab

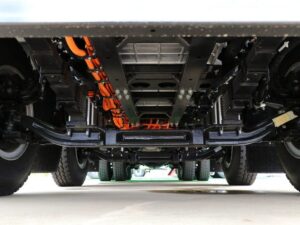

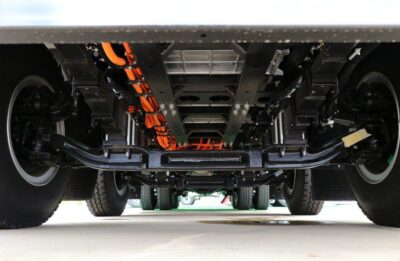

Parametri šasije
Allowable Load on Front Axle	6500/6500KG
Allowable Load on Rear Axle	18000 (two-axle group) kg

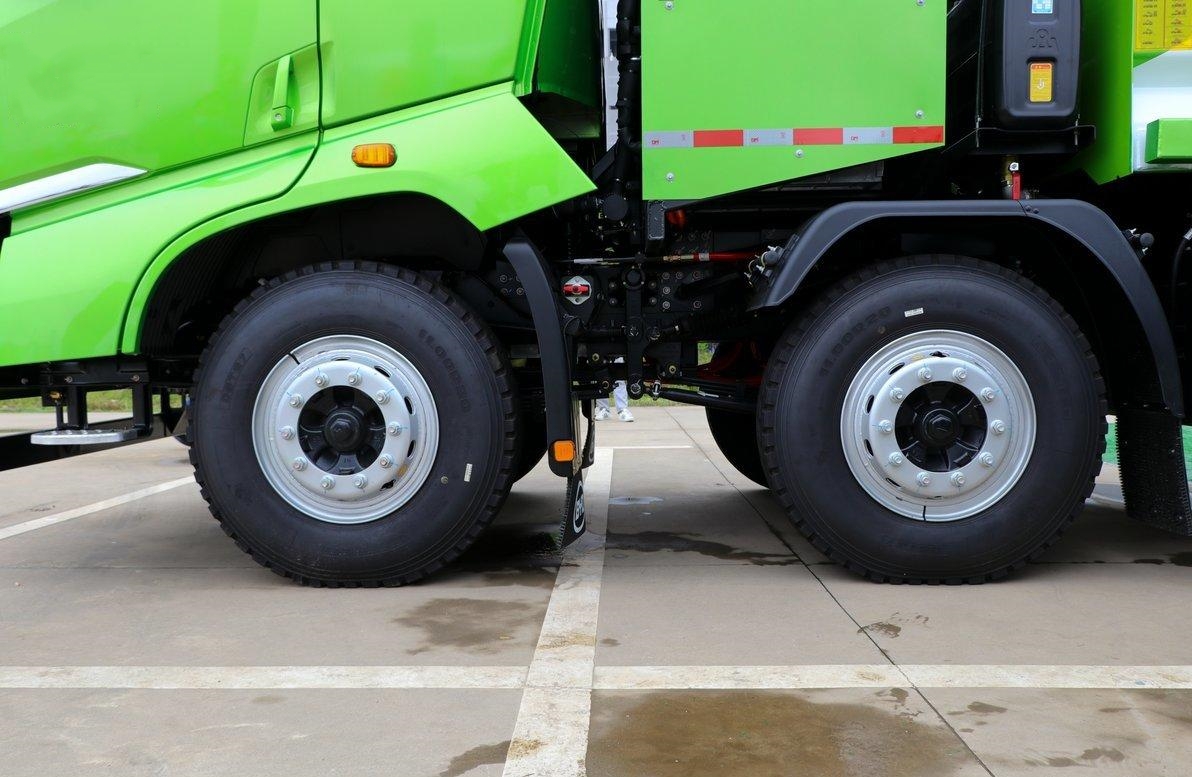

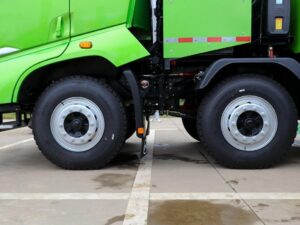

Pnevmatika
Specifikacija pnevmatike	11.00R20, 12.00R20
Število pnevmatik	12
Baterija
Battery Type	Lithium Iron Phosphate Battery
Kapaciteta baterije	444.36 kWh
Način polnjenja	DC 120X2
Charging Time	DC 2h
Konfiguracija nadzora
ABS protiblokirni zavorni sistem	●
Notranja konfiguracija
Power Windows	●
Obratna slika	●
Daljinski ključ	●
Elektronska centralna ključavnica	●
Multimedijska konfiguracija
Colorful Large Screen on Center Console	●
